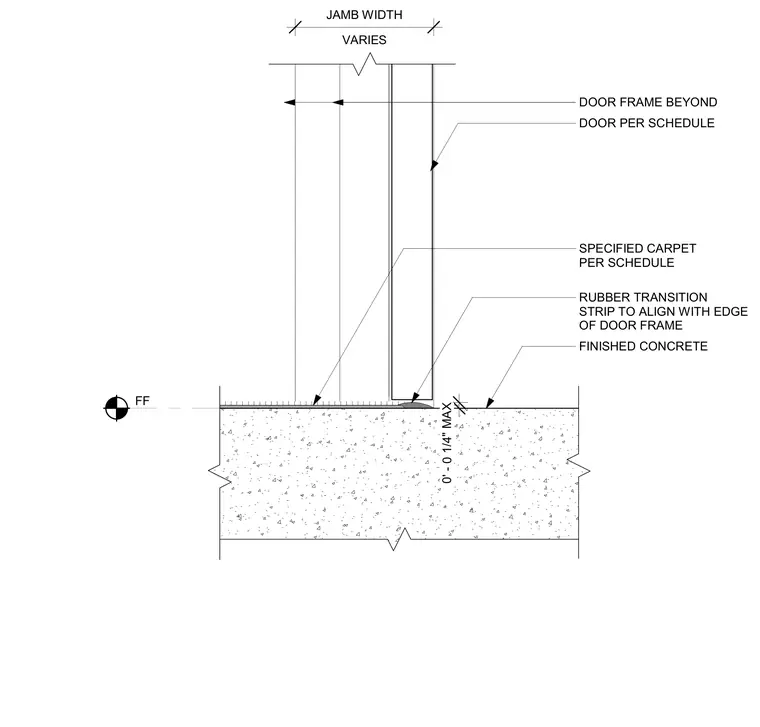

A rubber transition strip is aligned with the edge of the door frame to bridge the transition from finished concrete to specified carpet. The door and carpet are installed per schedule over a finished concrete slab, with the jamb width varying up to zero feet and one-quarter inch maximum. The door frame is shown in the background relative to the finished floor level.
RUBBER TRANSITION STRIP TO ALIGN WITH EDGE OF DOOR FRAME VARIES JAMB WIDTH 0' - 0 1/4" MAX SPECIFIED CARPET PER SCHEDULE FINISHED CONCRETE DOOR PER SCHEDULE DOOR FRAME BEYOND FF
