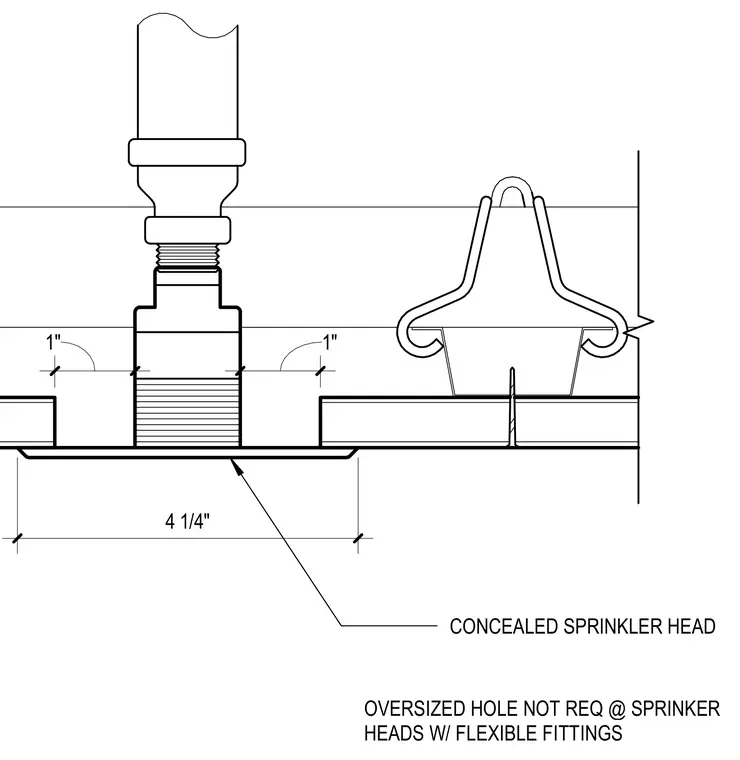

A four-and-a-quarter-inch concealed sprinkler head integrates into a suspended ceiling assembly with a one-inch clearance on each side. Oversized holes are not required at sprinkler heads equipped with flexible fittings. The drop pipe connects to a threaded fitting above the ceiling grid and drops down through the ceiling tile penetration. A one-by-one-and-a-half-inch angle supports the adjacent framing.
4 1/4" CONCEALED SPRINKLER HEAD 1" 1" OVERSIZED HOLE NOT REQ @ SPRINKER HEADS W/ FLEXIBLE FITTINGS 1 1/2"X1 1/2" ANGLE
