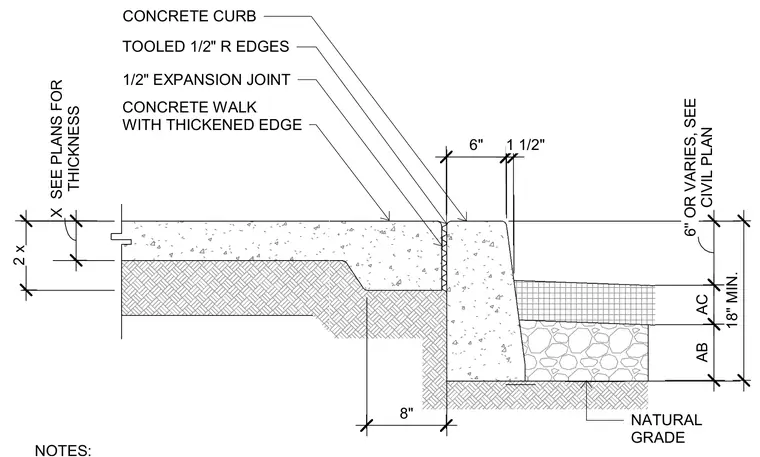

A concrete walk with a thickened edge meets a concrete curb over natural grade with aggregate base and asphaltic concrete layers. A half-inch expansion joint separates the walk and curb assembly. The concrete edges are tooled with a half-inch radius. Walk thickness and curb dimensions are coordinated per civil plans.
NATURAL GRADE CONCRETE WALK WITH THICKENED EDGE 1/2" EXPANSION JOINT TOOLED 1/2" R EDGES CONCRETE CURB THICKNESS X SEE PLANS FOR 2 x 18" MIN. AB CIVIL PLAN 6'' OR VARIES, SEE AC 6" 1 1/2" 8"
