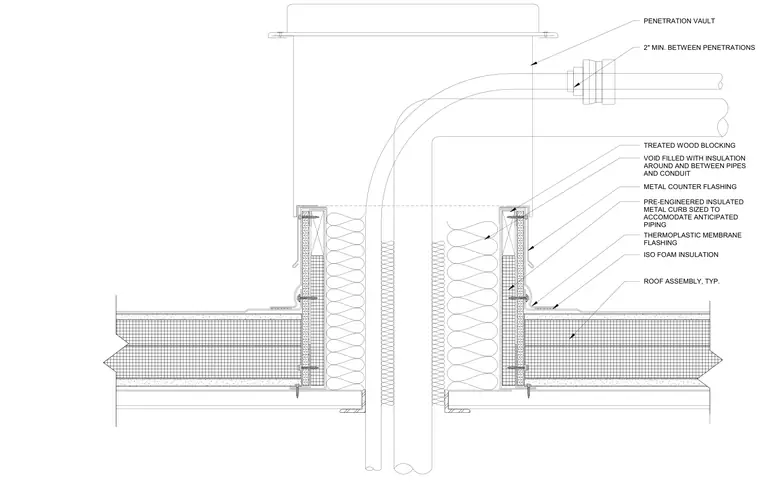

A pre-engineered insulated metal curb is anchored over treated wood blocking within a typical roof assembly comprising polyisocyanurate foam insulation and a thermoplastic membrane flashing. The curb is sized to accommodate anticipated piping and conduit penetrations, maintaining a minimum two-inch clearance between penetrations. Voids around and between the pipes and conduit are filled with insulation, and metal counter flashing protects the curb top. A penetration vault housing fits over the curb assembly.
ROOF ASSEMBLY, TYP. ISO FOAM INSULATION THERMOPLASTIC MEMBRANE FLASHING PRE-ENGINEERED INSULATED METAL CURB SIZED TO ACCOMODATE ANTICIPATED PIPING METAL COUNTER FLASHING VOID FILLED WITH INSULATION AROUND AND BETWEEN PIPES AND CONDUIT 2" MIN. BETWEEN PENETRATIONS PENETRATION VAULT TREATED WOOD BLOCKING
