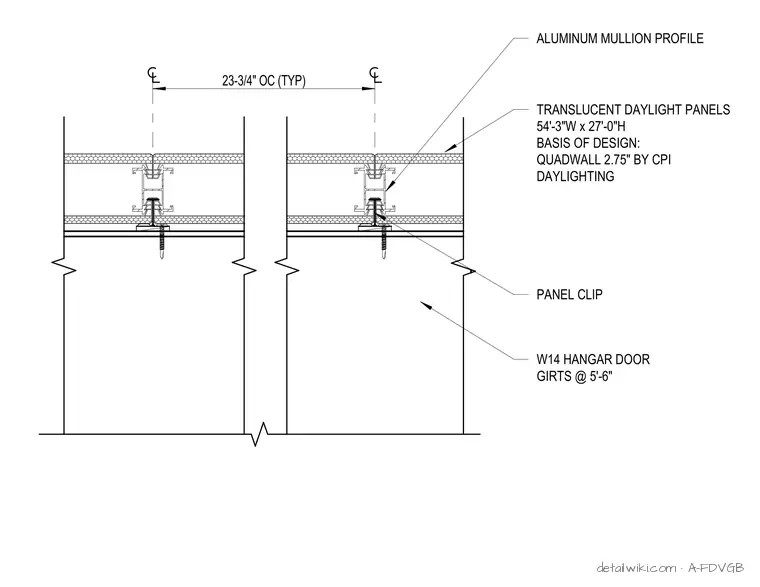

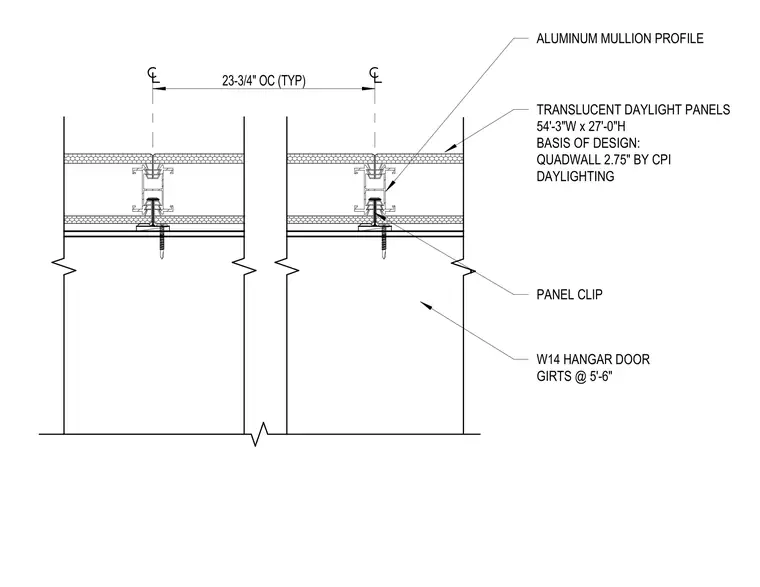

A-FDVGB — Daylight Panel Mullion

Architectural · A-FDVGB

Daylight Panel Mullion

Scale: SCALE: 3" = 1'-0"
Units: imperial
Sheet: A507
Discipline: Architectural

Materials

Elements

Curtain Walls Doors Facades / Cladding

Text on the drawing

TRANSLUCENT DAYLIGHT PANELS 54'-3"W x 27'-0"H BASIS OF DESIGN: QUADWALL 2.75" BY CPI DAYLIGHTING ALUMINUM MULLION PROFILE W14 HANGAR DOOR GIRTS @ 5'-6" PANEL CLIP 23-3/4" OC (TYP)
