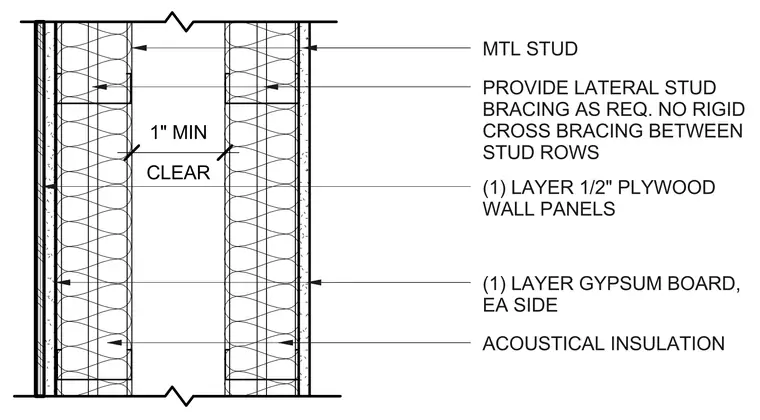

This non-rated acoustical partition consists of two parallel rows of metal studs separated by a one-inch minimum clear space without rigid cross bracing. Each stud row receives lateral stud bracing as required. The framing is finished on each side with one layer of one-half-inch plywood wall panels and one layer of gypsum board. Acoustical insulation fills the stud cavities to improve sound attenuation.
PROVIDE LATERAL STUD BRACING AS REQ. NO RIGID CROSS BRACING BETWEEN STUD ROWS ACOUSTICAL INSULATION (1) LAYER 1/2" PLYWOOD WALL PANELS CLEAR 1" MIN MTL STUD (1) LAYER GYPSUM BOARD, EA SIDE
