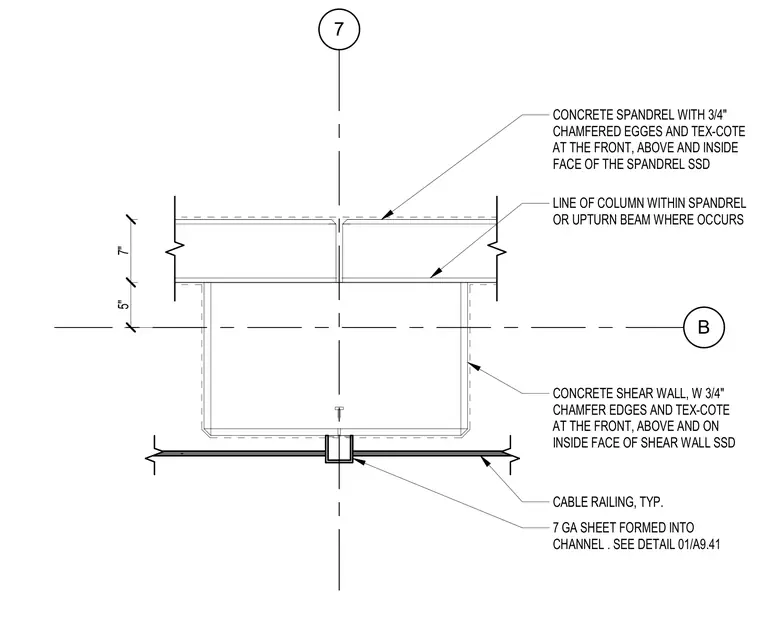

A concrete shear wall intersects with a concrete spandrel beam featuring three-quarter-inch chamfered edges and a textured protective coating on exposed faces. A column line runs within the spandrel or upturn beam where it occurs. A typical cable railing is mounted along the edge, incorporating a seven-gauge sheet formed into a channel connecting to a referenced detail. Dimensions of seven inches and five inches locate the structural grid lines.
7 B CONCRETE SHEAR WALL, W 3/4" CHAMFER EDGES AND TEX-COTE AT THE FRONT, ABOVE AND ON INSIDE FACE OF SHEAR WALL SSD CONCRETE SPANDREL WITH 3/4" CHAMFERED EGGES AND TEX-COTE AT THE FRONT, ABOVE AND INSIDE FACE OF THE SPANDREL SSD 7 GA SHEET FORMED INTO CHANNEL . SEE DETAIL 01/A9.41 LINE OF COLUMN WITHIN SPANDREL OR UPTURN BEAM WHERE OCCURS CABLE RAILING, TYP. 7" 5"
