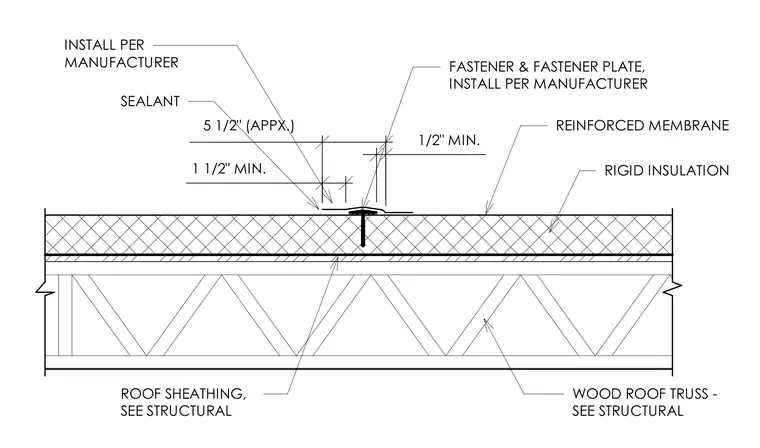

A reinforced membrane roof assembly bears on roof sheathing and wood roof trusses sized per structural drawings. Rigid insulation sits atop the sheathing, overlaid with a reinforced roof membrane. A fastener and fastener plate secure the membrane lap, installed per the manufacturer's recommendations. Sealant is applied at the lap joint maintaining a minimum one and a half inch overlap and a half inch clearance.
1 1/2" MIN. 1/2" MIN. 5 1/2" (APPX.) WOOD ROOF TRUSS - SEE STRUCTURAL INSTALL PER MANUFACTURER SEALANT FASTENER & FASTENER PLATE, INSTALL PER MANUFACTURER REINFORCED MEMBRANE RIGID INSULATION ROOF SHEATHING, SEE STRUCTURAL
