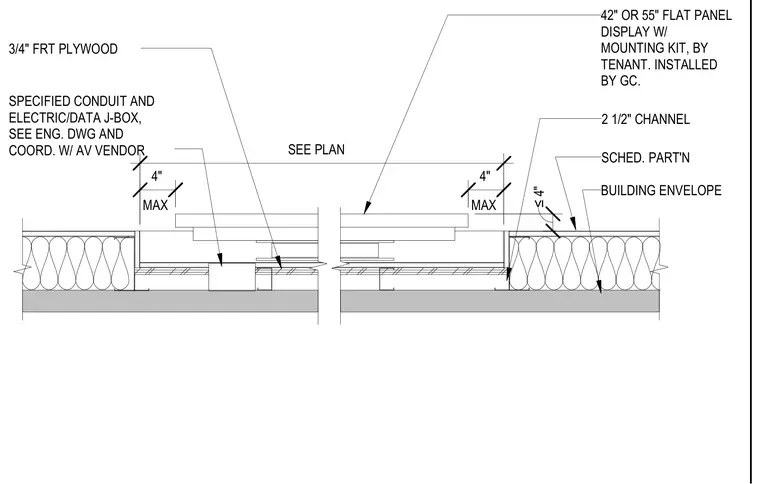

A recessed wall assembly detail frames a 42-inch or 55-inch flat panel display with mounting kit supplied by the tenant and installed by the general contractor. The backing consists of three-quarter-inch fire-retardant treated plywood secured within a scheduled partition built with two-and-a-half-inch steel channels. Specified conduit and electric or data junction boxes are coordinated with the audio-visual vendor per engineering drawings. Maximum four-inch dimensional limits govern the recess layout relative to the building envelope.
SEE PLAN BUILDING ENVELOPE SCHED. PART'N 2 1/2" CHANNEL SPECIFIED CONDUIT AND ELECTRIC/DATA J-BOX, SEE ENG. DWG AND COORD. W/ AV VENDOR 42" OR 55" FLAT PANEL DISPLAY W/ MOUNTING KIT, BY TENANT. INSTALLED BY GC. 3/4" FRT PLYWOOD ≤4" MAX 4" MAX 4"
