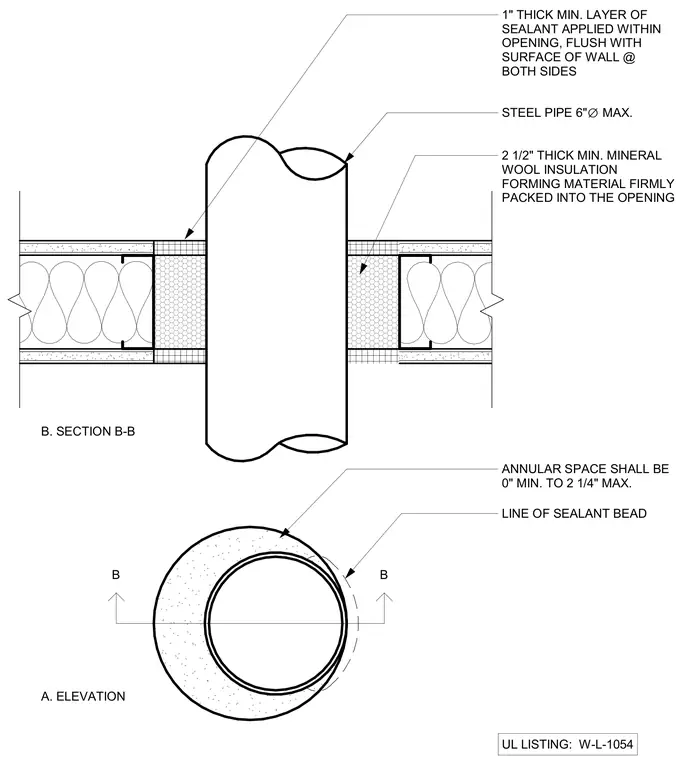

A steel pipe with a maximum diameter of six inches penetrates a partition wall assembly. The annular space around the pipe ranges from zero inches minimum to two and one-quarter inches maximum. This space is firmly packed with a minimum two and one-half inch thick layer of mineral wool insulation forming material. A minimum one-inch thick layer of sealant is applied flush with the wall surface on both sides. The penetration complies with UL Listing W-L-1054.
A. ELEVATION B. SECTION B-B B B STEEL PIPE 6" ∅ MAX. 1" THICK MIN. LAYER OF SEALANT APPLIED WITHIN OPENING, FLUSH WITH SURFACE OF WALL @ BOTH SIDES UL LISTING: W-L-1054 2 1/2" THICK MIN. MINERAL WOOL INSULATION FORMING MATERIAL FIRMLY PACKED INTO THE OPENING ANNULAR SPACE SHALL BE 0" MIN. TO 2 1/4" MAX. LINE OF SEALANT BEAD
