Architectural · A-FCBV2

Exterior Window Sill and Wall Detail

Materials

Timber / Wood Masonry / CMU Brick Glass / Glazing Metal (misc.)Gypsum / Drywall

Elements

Columns Walls Windows Floors / Slabs Waterproofing / Flashing Insulation Drainage Anchors / Embeds

Connections

Embed Plate

About this detail

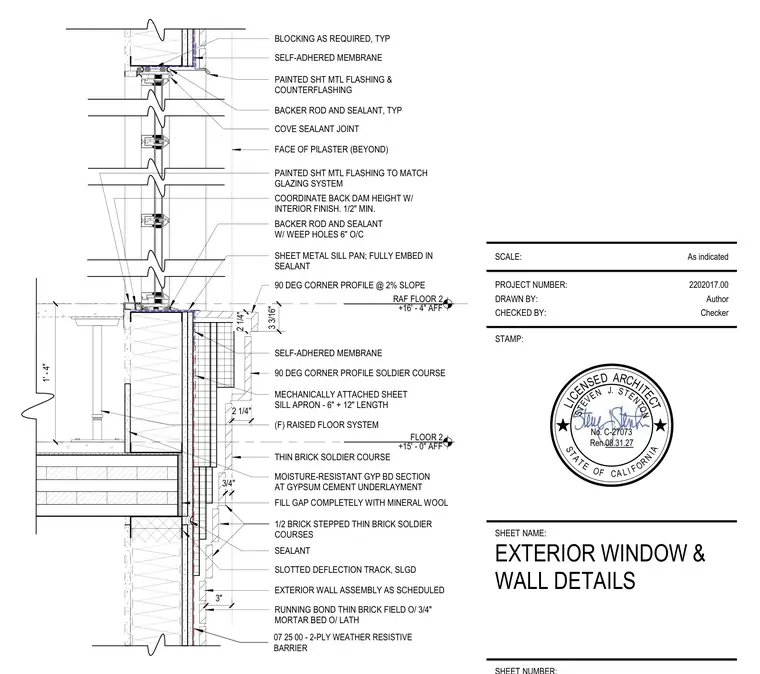

An exterior window head, sill, and lower wall assembly at Floor 2 features a punched window unit interfacing with thin brick veneer and a raised floor system. The window sill is waterproofed with a fully embedded sheet metal sill pan and backer rod sealant joints with weep holes spaced at six inches on center. The exterior wall construction incorporates a running bond thin brick field over a three-quarter-inch mortar bed and lath, backed by a two-ply weather resistive barrier, self-adhered membrane, and exterior wall assembly as scheduled. At the window head, painted sheet metal flashing and counterflashing match the glazing system alongside a slotted deflection track with mineral wool gap fill and moisture-resistant gypsum board.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
