A cast underlayment or concrete slab supports a finish flooring transition with carpet on one side and tile on the other. A metal floor profile edging acts as a transition strip between the tile and carpet, requiring verification of material heights with the floor finishes. Tile and grout are installed per the finish schedule over the substrate. Carpet is similarly installed per the finish schedule adjacent to the edge profile.

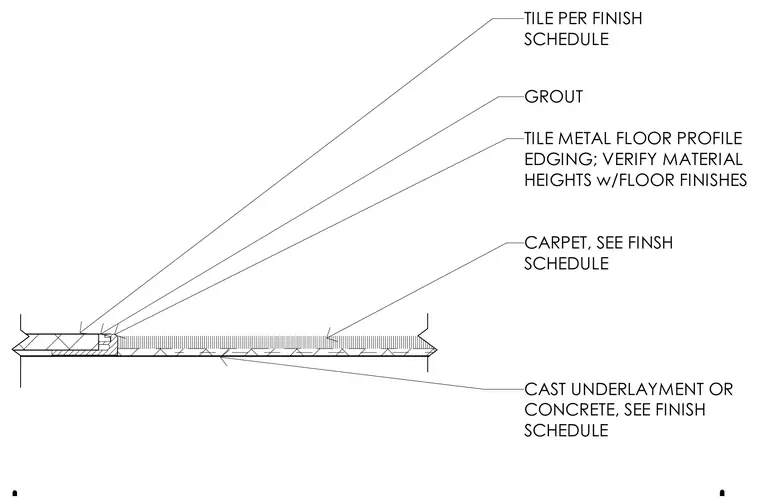

CAST UNDERLAYMENT OR CONCRETE, SEE FINISH SCHEDULE CARPET, SEE FINSH SCHEDULE GROUT TILE PER FINISH SCHEDULE TILE METAL FLOOR PROFILE EDGING; VERIFY MATERIAL HEIGHTS w/FLOOR FINISHES
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
