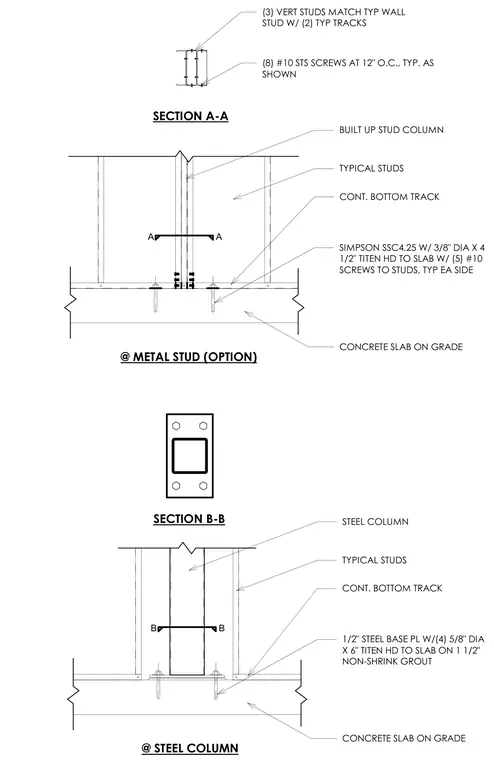

Two base connection options for interior partitions meeting a concrete slab on grade. The first option features a built-up cold-formed steel stud column composed of three vertical studs matching the typical wall stud with two typical tracks, fastened using eight number 10 self-tapping screws at 12 inches on center. This built-up assembly bears on a continuous bottom track secured with Simpson SSC4.25 connectors fastened to the slab using 3/8-inch diameter by 4-1/2-inch Titen HD anchors and five number 10 screws to the studs on each side. The second option features a structural steel column bearing on a 1/2-inch steel base plate over a 1-1/2-inch layer of non-shrink grout. The base plate is anchored to the concrete slab on grade with four 5/8-inch diameter by 6-inch Titen HD anchors.
STEEL COLUMN TYPICAL STUDS CONT. BOTTOM TRACK 1/2" STEEL BASE PL W/(4) 5/8" DIA X 6" TITEN HD TO SLAB ON 1 1/2" NON-SHRINK GROUT CONCRETE SLAB ON GRADE B B @ STEEL COLUMN SECTION A-A BUILT UP STUD COLUMN TYPICAL STUDS CONT. BOTTOM TRACK SIMPSON SSC4.25 W/ 3/8" DIA X 4 1/2" TITEN HD TO SLAB W/ (5) #10 SCREWS TO STUDS, TYP EA SIDE CONCRETE SLAB ON GRADE A A @ METAL STUD (OPTION) (3) VERT STUDS MATCH TYP WALL STUD W/ (2) TYP TRACKS (8) #10 STS SCREWS AT 12" O.C., TYP. AS SHOWN SECTION B-B
