Structural · A-FBX2K

Cantilever Deflection Brace Connection

Materials

Steel

Elements

Bracing

Connections

Bracing Connection

About this detail

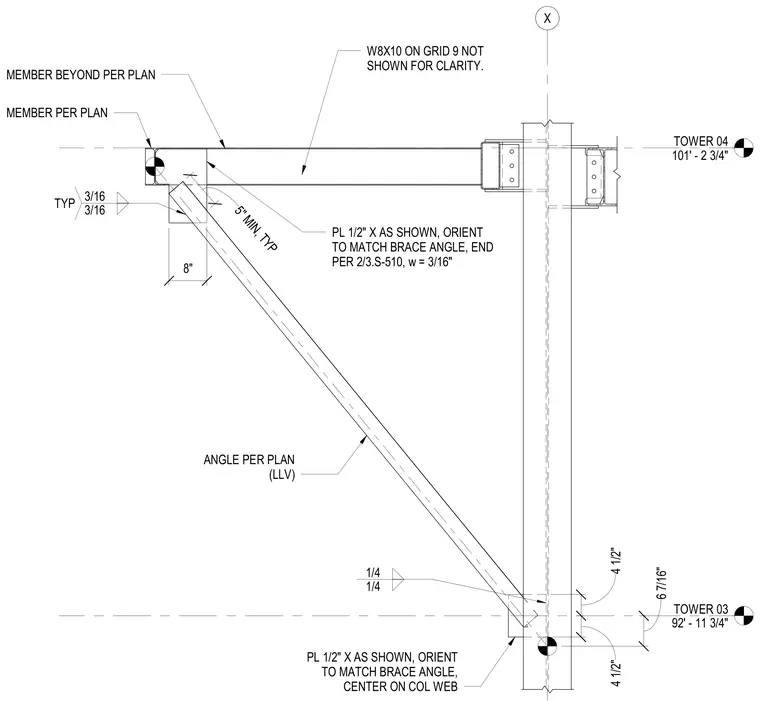

A structural cantilever deflection brace detail featuring an angle brace connected to a W8x10 beam and column. A half-inch thick gusset plate oriented to match the brace angle is welded to the web with three-sixteenths inch fillet welds. An additional half-inch plate is centered on the column web with quarter-inch fillet welds. Member and angle sizes are specified per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
