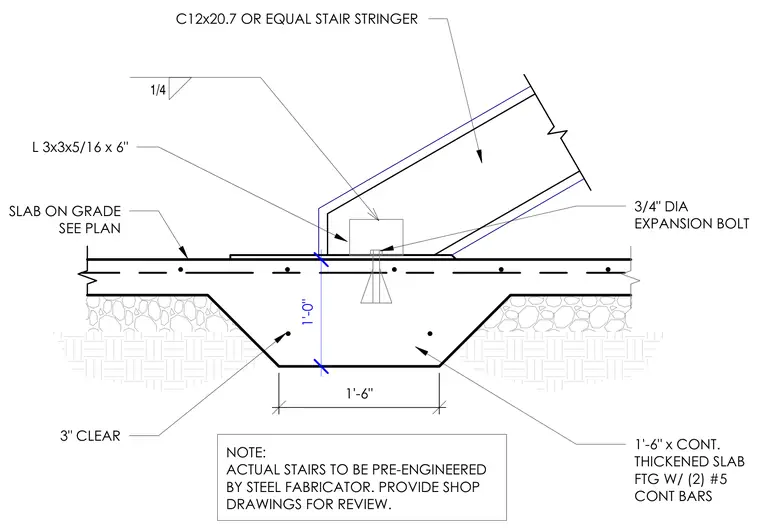

A C12x20.7 or equal steel stair stringer connects to a concrete slab on grade via a 3x3x5/16-inch angle measuring 6 inches long. The angle is secured to the concrete using a three-quarter-inch diameter expansion bolt, and a quarter-inch fillet weld connects the stringer to the angle. The assembly bears on a 1-foot-6-inch continuous thickened slab footing reinforced with two continuous number 5 rebars, maintaining a 3-inch clear cover. The actual stairs are to be pre-engineered by the steel fabricator with shop drawings provided for review.
1'-6" C12x20.7 OR EQUAL STAIR STRINGER L 3x3x5/16 x 6" SLAB ON GRADE SEE PLAN 3" CLEAR 1'-6" x CONT. THICKENED SLAB FTG W/ (2) #5 CONT BARS 3/4" DIA EXPANSION BOLT NOTE: ACTUAL STAIRS TO BE PRE-ENGINEERED BY STEEL FABRICATOR. PROVIDE SHOP DRAWINGS FOR REVIEW. 1'-0" 1/4
