Recessed Wall Mounted Television Niche with Stone and Wood Tile Detail

Materials

Timber / Wood Stone Metal (misc.)Gypsum / Drywall

Elements

About this detail

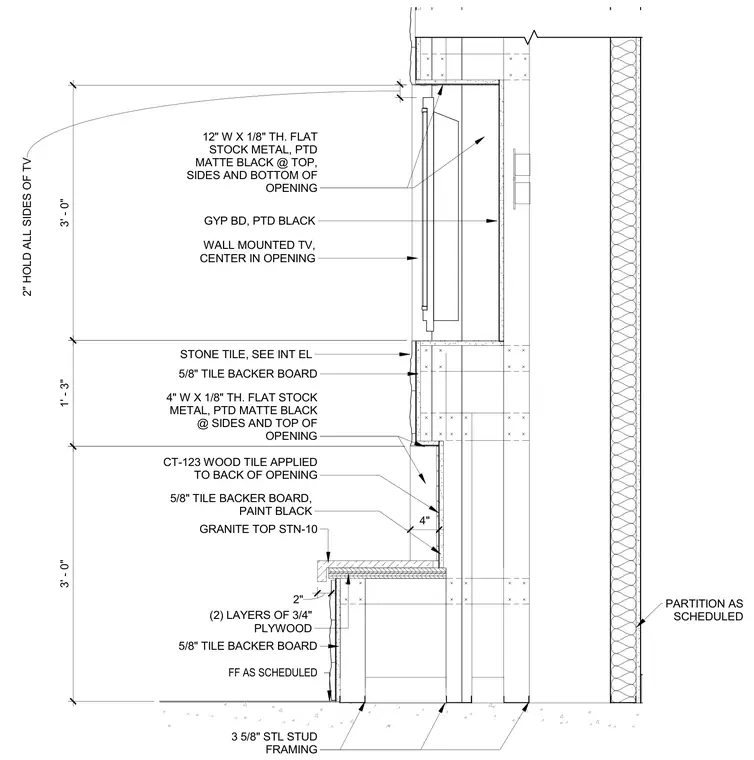

The partition consists of three-and-five-eighths-inch steel stud framing with two layers of three-quarter-inch plywood at the base and five-eighths-inch tile backer board throughout. The lower section features a granite top designated as STIN-10 over a plywood substrate, with wood tile applied to the back of the opening and tile backer board painted black. A four-inch-wide by one-eighth-inch-thick flat stock metal painted matte black trims the sides and top of the lower opening. The upper television recess provides a two-inch clearance on all sides, lined with gypsum board painted black and framed with a twelve-inch-wide by one-eighth-inch-thick flat stock metal painted matte black at the top, sides, and bottom. Exterior faces are finished with stone tile per interior elevations over tile backer board.
