Architectural · A-FB9ET

Window Wall Opener Head and Canopy Junction

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Beams Walls Windows Curtain Walls Canopies Ceilings

Connections

Welded Connection Timber / Mass-Timber Connection

About this detail

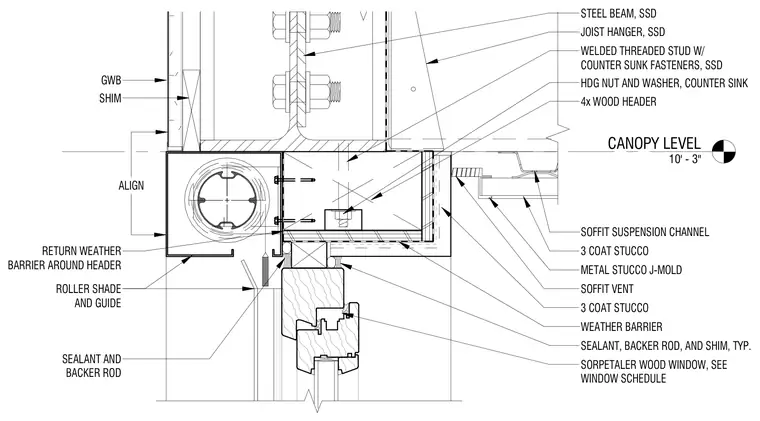

A structural steel beam supports the canopy level with a joist hanger and soffit suspension channel framing the underside. A four-by wood header is anchored below the steel beam using welded threaded studs with countersunk fasteners, hot-dip galvanized nuts, and washers. A wood window assembly installs below the header with perimeter sealant, backer rods, and shims typical. The exterior soffit receives a three-coat stucco finish over a weather barrier, metal stucco J-molding, and a soffit vent. An interior gypsum wallboard layer aligns with a shim at the interior face, and a roller shade housing and guide mount adjacent to the window head with weather barrier returned around the header.
