Concrete dock door opening featuring beveled edges around the perimeter. A ten-inch pour-through opening is located near the bottom of the assembly. Reference tags direct to related architectural sheets.

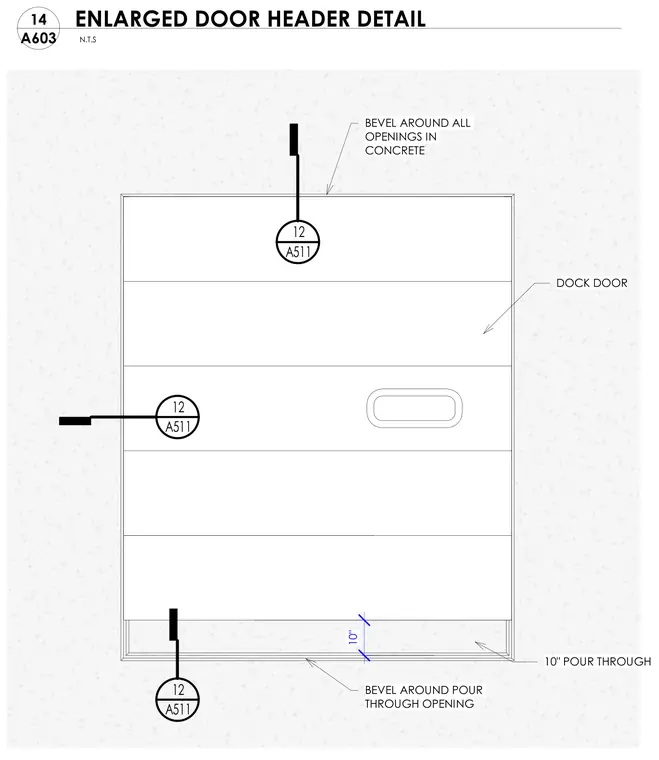

BEVEL AROUND ALL OPENINGS IN CONCRETE DOCK DOOR 10" 12 A511 12 A511 BEVEL AROUND POUR THROUGH OPENING 10" POUR THROUGH 12 A511 N.T.S A603 14 ENLARGED DOOR HEADER DETAIL
