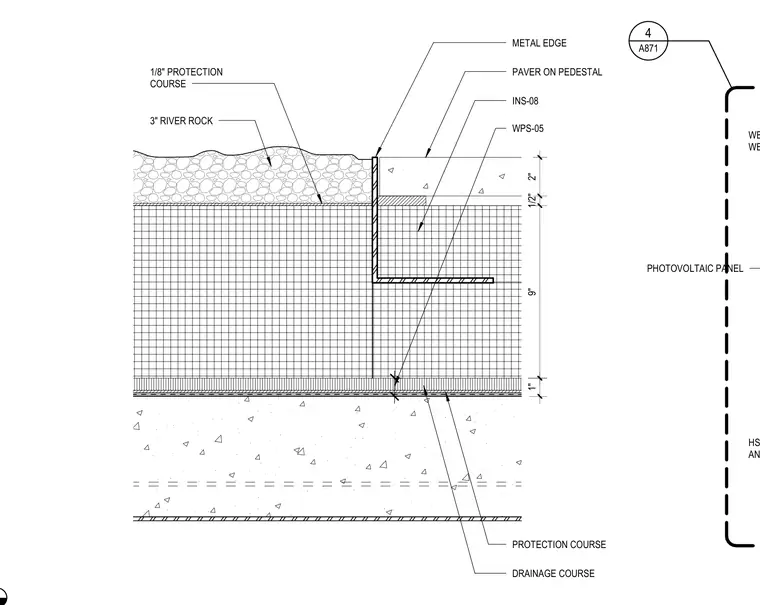

A ballasted assembly transitions between a paver surface on pedestals and a three-inch river rock zone. The build-up includes a drainage course, a protection course, waterproofing membrane WPS-05, and insulation layer INS-08. A metal edge partition separates the paver system from the adjacent ballast. Hollow structural section column and beam framing supports the assembly below, with weather-tight seal welds specified at structural connections.
HSS COLUMN AND BEAM, SSD WEATHER-TIGHT SEAL WELD, TYP. PHOTOVOLTAIC PANEL 4 A871 3" RIVER ROCK WPS-05 INS-08 1/8" PROTECTION COURSE 1 5/16" 1" 2" 1/2" 9" PAVER ON PEDESTAL METAL EDGE PROTECTION COURSE DRAINAGE COURSE
