Section - Cubicle Curtain Track At Flat Panel

Materials

Steel

Elements

Ceilings Decks Bracing

Connections

Bracing Connection Bolted Connection

About this detail

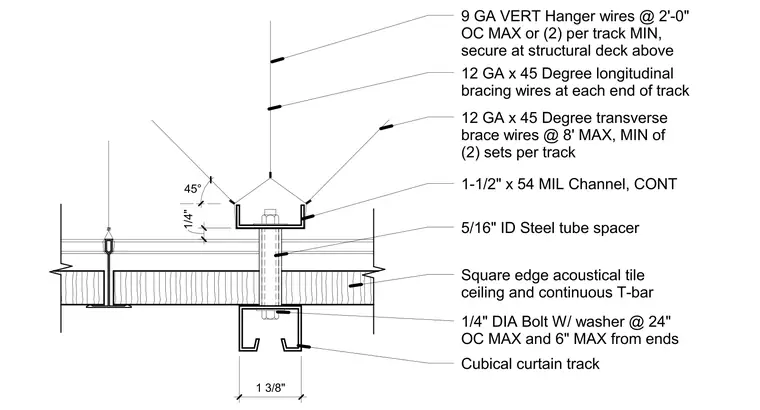

A continuous one-and-a-half-inch by fifty-four mil steel channel supports a cubicle curtain track measuring one and three-eighths inches wide below a square-edge acoustical tile ceiling and continuous T-bar grid. Nine-gauge vertical hanger wires spaced at two feet on-center maximum, or a minimum of two per track, secure the assembly to the structural deck above. Twelve-gauge forty-five-degree longitudinal bracing wires are positioned at each end of the track, supplemented by twelve-gauge forty-five-degree transverse brace wires spaced at eight feet maximum with a minimum of two sets per track. A continuous five-sixteenth-inch inside diameter steel tube spacer maintains alignment. One-quarter-inch diameter bolts with washers spaced at twenty-four inches on-center maximum and six inches maximum from the ends fasten through the assembly.
