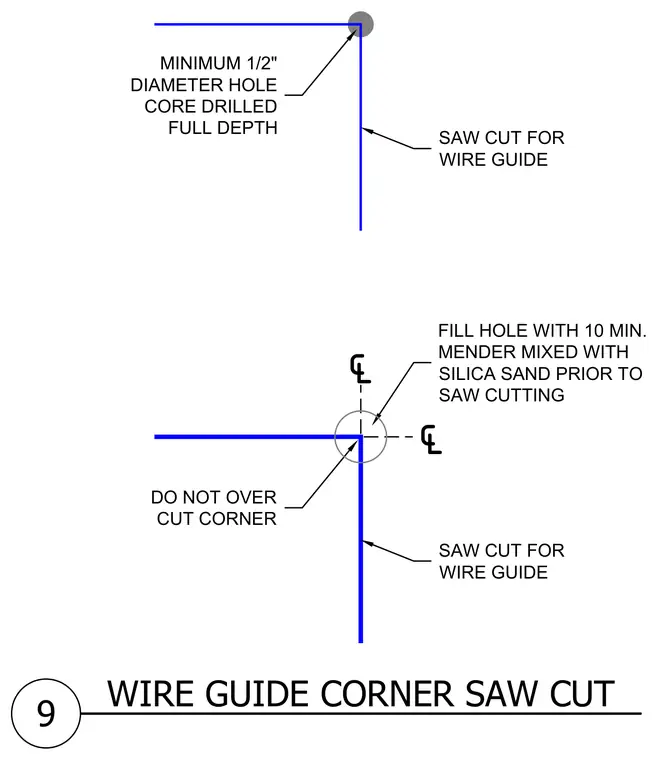

A minimum half-inch diameter hole is core drilled to full depth at the inside corner before making saw cuts for the wire guide. The core drilled hole is filled with ten-minute mender mixed with silica sand prior to saw cutting. Saw cuts extend outward from the corner without overcutting the intersection.
WIRE GUIDE CORNER SAW CUT 9 ℄ ℄ SAW CUT FOR WIRE GUIDE DO NOT OVER CUT CORNER MINIMUM 1/2" DIAMETER HOLE CORE DRILLED FULL DEPTH SAW CUT FOR WIRE GUIDE FILL HOLE WITH 10 MIN. MENDER MIXED WITH SILICA SAND PRIOR TO SAW CUTTING
