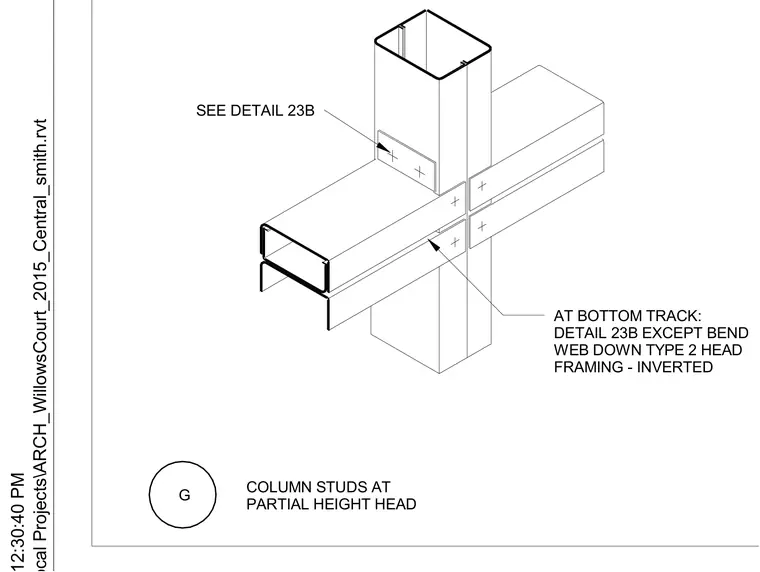

Cold-formed steel framing details for partial-height head connections intersecting columns. The assembly utilizes type two head framing with inverted track conditions at the bottom track and modified web conditions matching detail 23B.
SEE DETAIL 23B AT BOTTOM TRACK: DETAIL 23B EXCEPT BEND WEB DOWN TYPE 2 HEAD FRAMING - INVERTED G COLUMN STUDS AT PARTIAL HEIGHT HEAD
