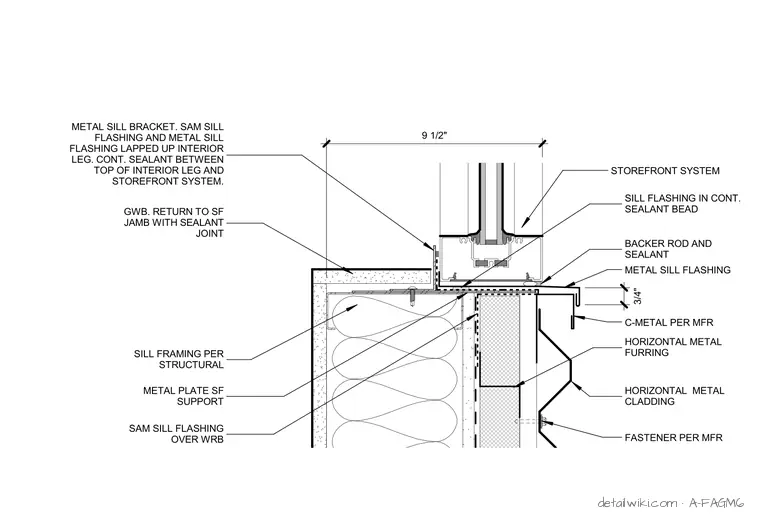

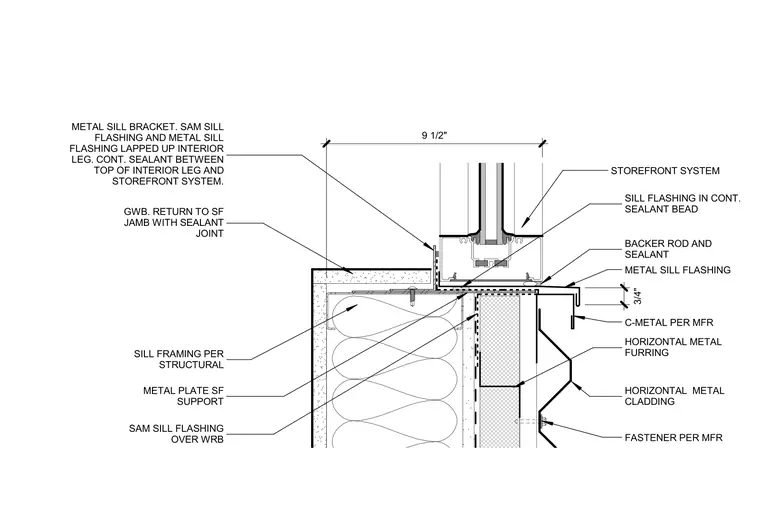

The storefront system sill framing rests on sill framing sized per structural requirements with a metal plate storefront support. A sill flashing is bedded in a continuous sealant bead over the water-resistive barrier, while sam sill flashing and metal sill flashing lap up the interior leg. Continuous sealant is applied between the top of the interior leg and the storefront system. Exterior horizontal metal cladding is secured over horizontal metal furring and C-metal per manufacturer specifications using manufacturer-approved fasteners. A backer rod and sealant joint seals the exterior interface, and gypsum wallboard returns to the storefront jamb with a sealant joint.
9 1/2" BACKER ROD AND SEALANT C-METAL PER MFR FASTENER PER MFR METAL SILL FLASHING HORIZONTAL METAL CLADDING HORIZONTAL METAL FURRING GWB. RETURN TO SF JAMB WITH SEALANT JOINT METAL SILL BRACKET. SAM SILL FLASHING AND METAL SILL FLASHING LAPPED UP INTERIOR LEG. CONT. SEALANT BETWEEN TOP OF INTERIOR LEG AND STOREFRONT SYSTEM. STOREFRONT SYSTEM SILL FRAMING PER STRUCTURAL SAM SILL FLASHING OVER WRB METAL PLATE SF SUPPORT 3/4" SILL FLASHING IN CONT. SEALANT BEAD
