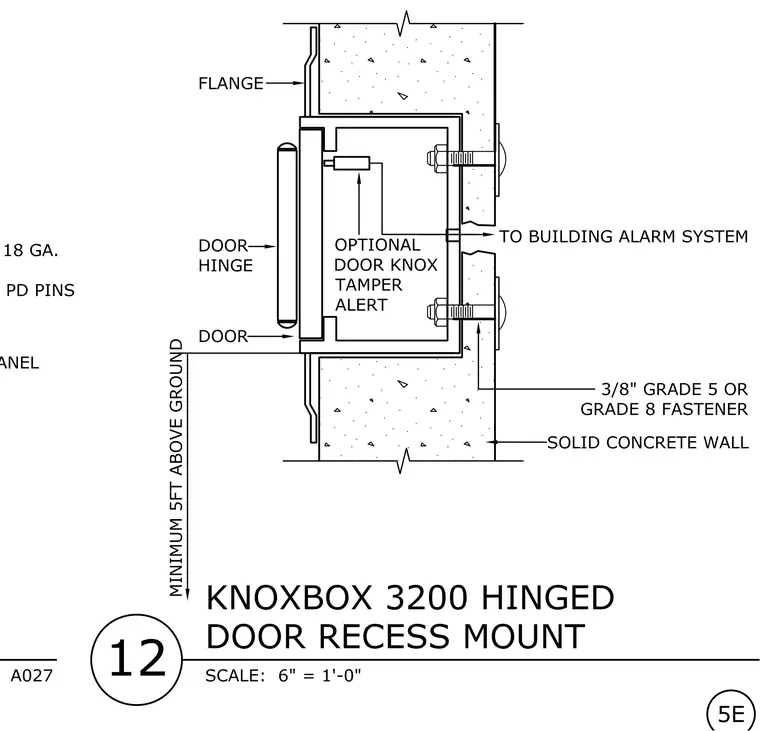

A recessed KnoxBox 3200 enclosure is mounted into a solid concrete wall and secured with three-eighths-inch Grade 5 or Grade 8 fasteners. The flanged housing sits flush with the exterior wall surface and features an integrated door hinge. An optional door Knox tamper alert connects to the building alarm system. The bottom of the assembly maintains a minimum clearance of five feet above the ground.
