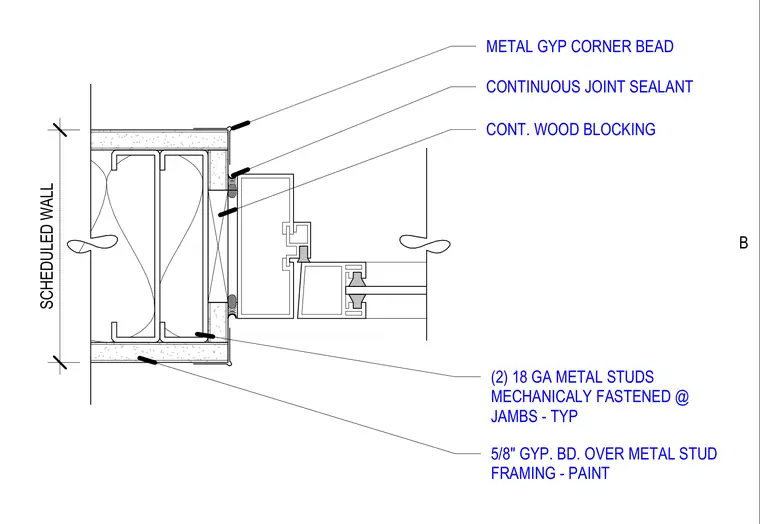

The interior storefront frame abuts a partition wall framed with two eighteen-gauge metal studs mechanically fastened at the jambs. Continuous wood blocking fills the space between the framing and the storefront profile, sealed with continuous joint sealant on both sides. The wall assembly is finished with five-eighths-inch gypsum board over metal stud framing with paint, terminated with a metal gypsum corner bead.
SCHEDULED WALL METAL GYP CORNER BEAD CONT. WOOD BLOCKING CONTINUOUS JOINT SEALANT 5/8" GYP. BD. OVER METAL STUD FRAMING - PAINT (2) 18 GA METAL STUDS MECHANICALY FASTENED @ JAMBS - TYP B
