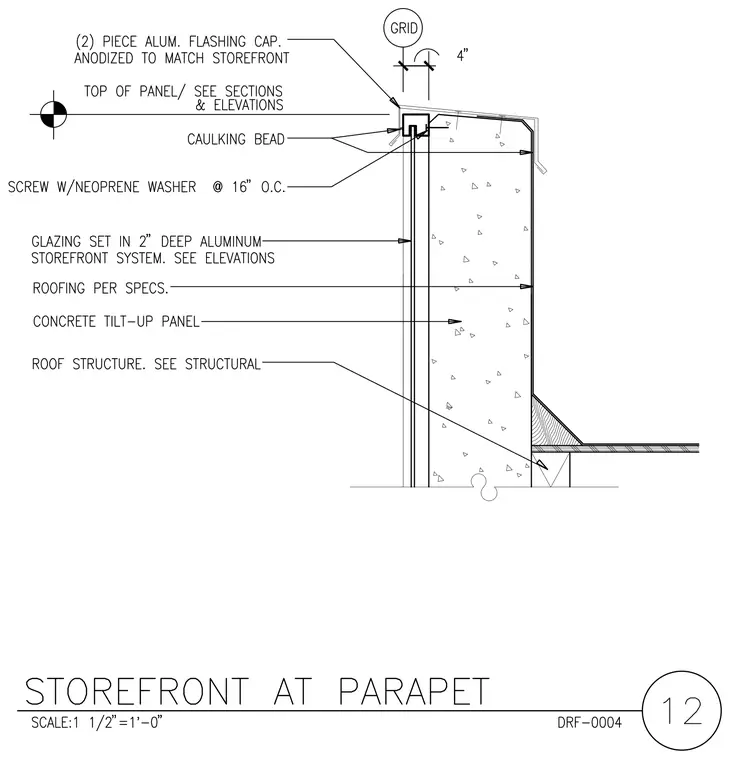

A two-piece aluminum flashing cap is anodized to match the storefront and secured over the top of the concrete tilt-up panel. A caulking bead and screws with neoprene washers at sixteen inches on center seal the junction between the framing and the wall. Glazing is set within a two-inch deep aluminum storefront system. Roofing is installed per specifications over the concrete tilt-up panel, which bears on the roof structure.
