An aluminum door frame system is installed within a framed partition with a double stud at the jamb and a lintel overhead sized per the structural schedule. Aluminum snap-on trim finishes both sides of the frame junction. A continuous sealant bead is applied at the frame perimeter on both sides. The door leaf is installed as scheduled.

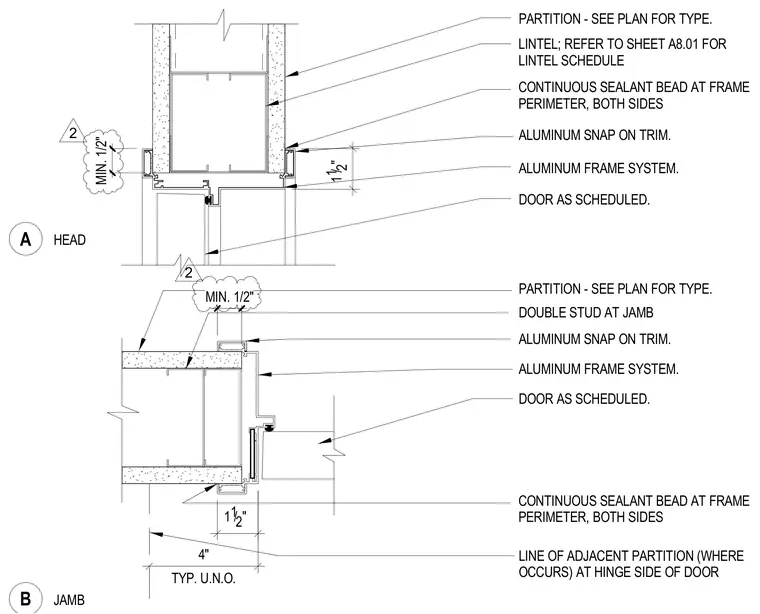

11/2" 1 1 /2" 4" TYP. U.N.O. LINTEL; REFER TO SHEET A8.01 FOR LINTEL SCHEDULE ALUMINUM SNAP ON TRIM. ALUMINUM FRAME SYSTEM. DOOR AS SCHEDULED. PARTITION - SEE PLAN FOR TYPE. CONTINUOUS SEALANT BEAD AT FRAME PERIMETER, BOTH SIDES ALUMINUM SNAP ON TRIM. LINE OF ADJACENT PARTITION (WHERE OCCURS) AT HINGE SIDE OF DOOR ALUMINUM FRAME SYSTEM. DOOR AS SCHEDULED. PARTITION - SEE PLAN FOR TYPE. DOUBLE STUD AT JAMB CONTINUOUS SEALANT BEAD AT FRAME PERIMETER, BOTH SIDES A HEAD B JAMB MIN. 1/2" MIN. 1/2" 2 2
