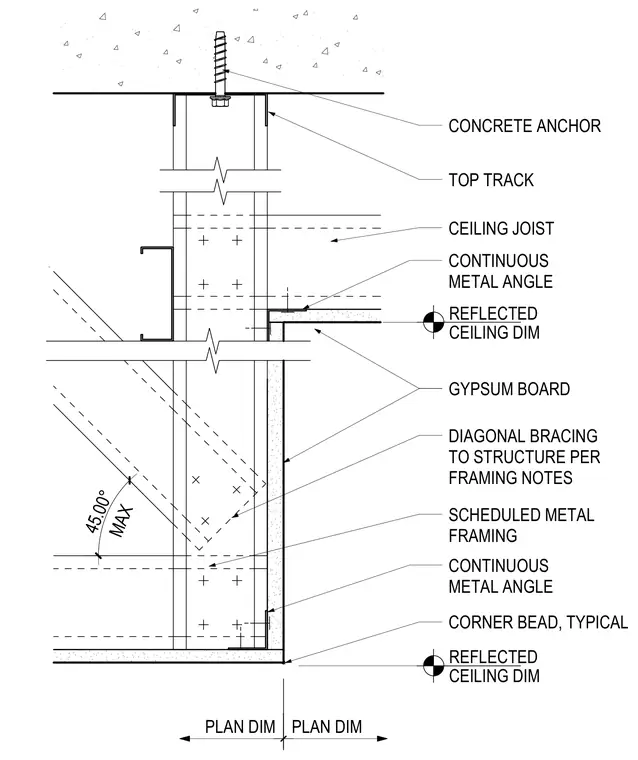

A top track is secured to the overhead concrete structure using concrete anchors. Scheduled metal framing with ceiling joists forms the drop soffit, supported laterally by diagonal bracing installed at a maximum forty-five-degree angle per framing notes. Continuous metal angles stabilize the gypsum board edges, and typical corner beads finish the exterior corners.
REFLECTED CEILING DIM GYPSUM BOARD DIAGONAL BRACING TO STRUCTURE PER FRAMING NOTES SCHEDULED METAL FRAMING REFLECTED CEILING DIM CEILING JOIST CORNER BEAD, TYPICAL CONTINUOUS METAL ANGLE TOP TRACK CONCRETE ANCHOR MAX 45.00° PLAN DIM PLAN DIM CONTINUOUS METAL ANGLE
