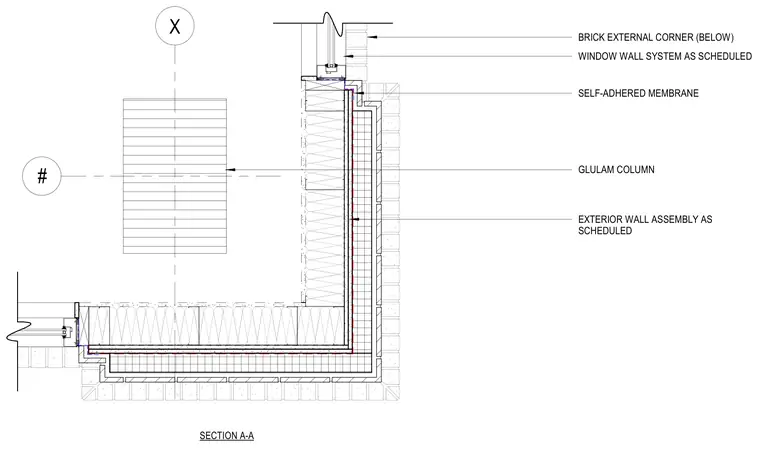

An exterior wall corner features a glulam column framed into the assembly as scheduled. A self-adhered waterproofing membrane wraps continuously behind the exterior wall layers to protect the structure. The outer finish consists of a brick external corner wrapping the exterior wall assembly as scheduled. A window wall system is integrated into the corner as scheduled.
# X SECTION A-A GLULAM COLUMN EXTERIOR WALL ASSEMBLY AS SCHEDULED WINDOW WALL SYSTEM AS SCHEDULED SELF-ADHERED MEMBRANE BRICK EXTERNAL CORNER (BELOW) / / / / / zir c / /icz: ic
