Accessible Toilet Fixture Clearance and Grab Bar Layout

Materials

Elements

About this detail

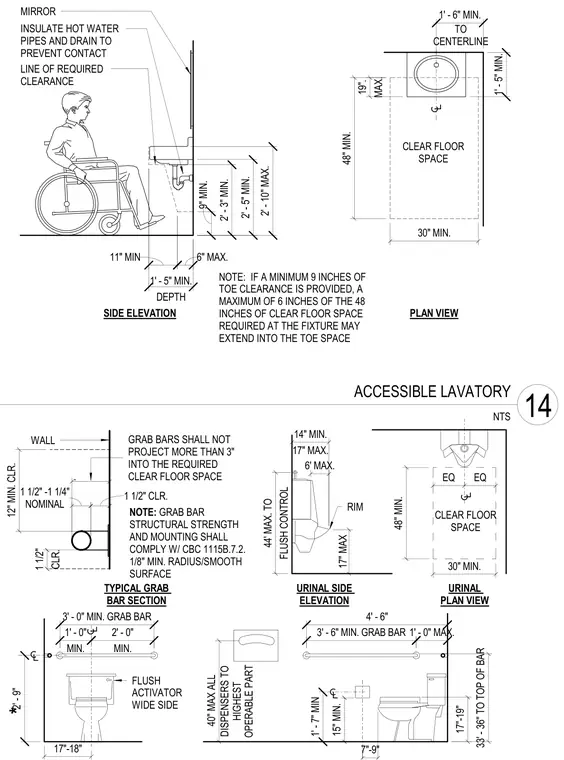

This drawing outlines accessible fixture clearances, lavatory dimensions, urinal placements, and grab bar configurations for ADA compliance. The accessible lavatory side elevation indicates a minimum nine-inch toe clearance, six-inch maximum knee depth, and a maximum rim height of two feet ten inches, with hot water pipes and drains insulated to prevent contact. Plan and elevation views specify a thirty-inch by forty-eight-inch clear floor space at fixtures. Urinal details establish a rim height of seventeen inches maximum, flush control heights up to forty-four inches, and equal side clearances. Grab bar sections detail a one-and-a-half-inch clearance from the wall with a nominal one-and-a-half to one-and-a-quarter-inch bar diameter, ensuring grab bars do not project more than three inches into required clear floor spaces.
