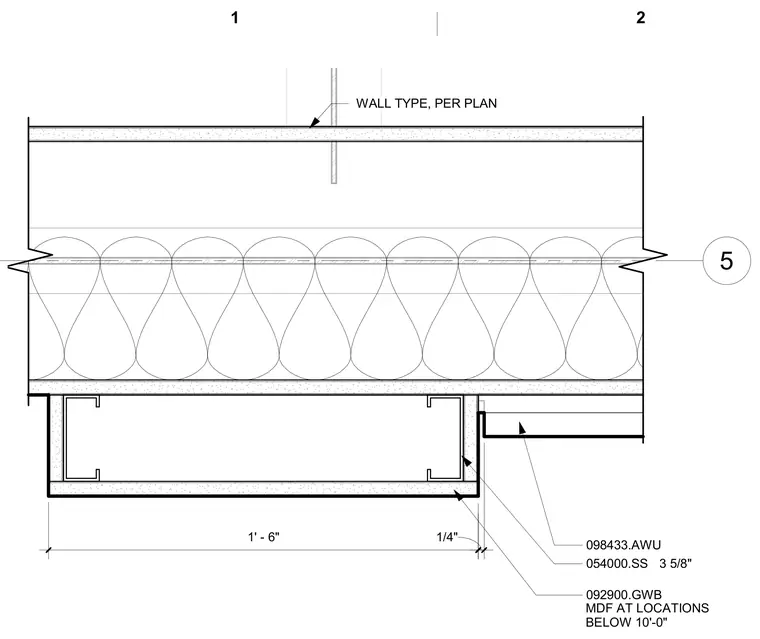

An acoustical wall panel surround is framed with three and five-eighths inch cold-formed metal studs and finished with gypsum wallboard. Medium-density fiberboard is provided at locations below ten feet. A wall type is installed per plan with insulation filling the stud cavity.
5 1/4" 098433.AWU 092900.GWB MDF AT LOCATIONS BELOW 10'-0" 1' - 6" 054000.SS 3 5/8" WALL TYPE, PER PLAN 2 1
