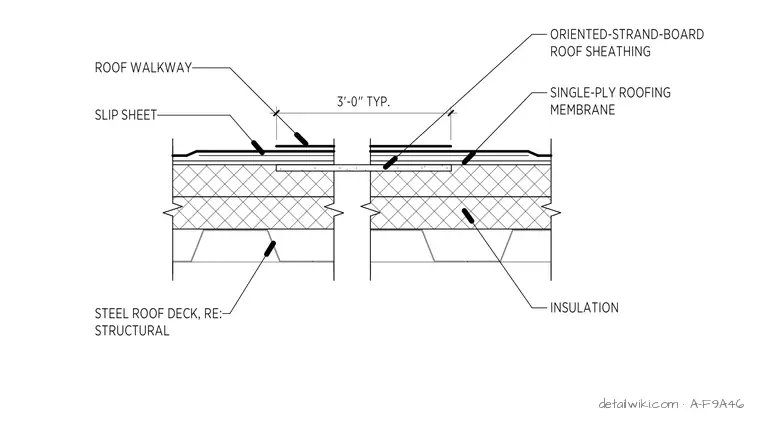

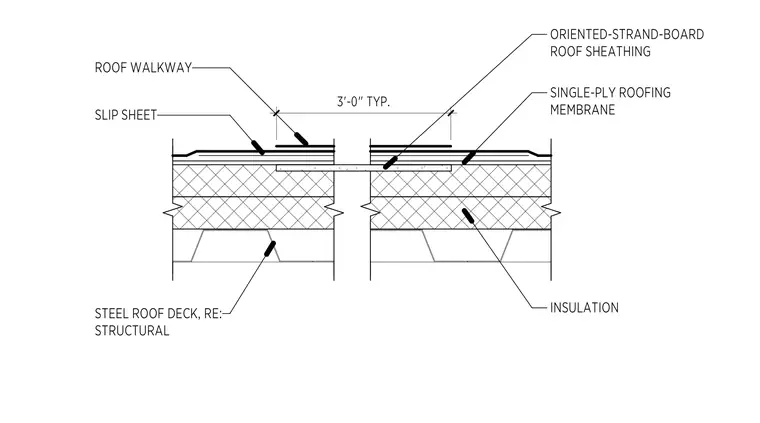

A roof walkway pad sits over a slip sheet, positioned atop a single-ply roofing membrane. The membrane covers oriented-strand-board roof sheathing, supported by layers of rigid insulation and a steel roof deck. Walkway pads are spaced at three feet typical on center across the roof surface.
