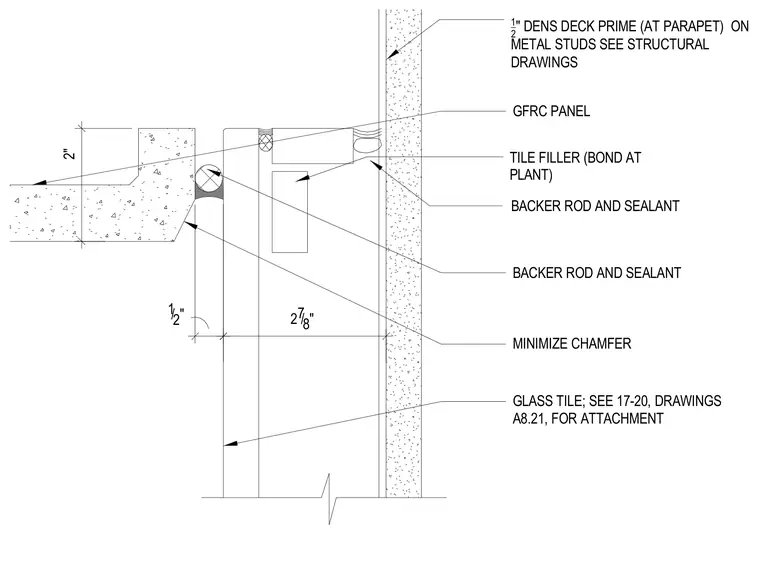

A glass tile assembly transitions to a glass fiber reinforced concrete panel at a parapet condition. A one-half inch dens deck prime substrate is installed over cold-formed metal studs. A factory-bonded tile filler is integrated with backer rod and sealant joints. Dimensioned clearances include a two-inch vertical dimension, a one-half inch offset, and a two-and-seven-eighths-inch spacing.
2 7 /8" 1/2" 2" GLASS TILE; SEE 17-20, DRAWINGS A8.21, FOR ATTACHMENT BACKER ROD AND SEALANT 1_ 2 " DENS DECK PRIME (AT PARAPET) ON METAL STUDS SEE STRUCTURAL DRAWINGS GFRC PANEL MINIMIZE CHAMFER BACKER ROD AND SEALANT TILE FILLER (BOND AT PLANT)
