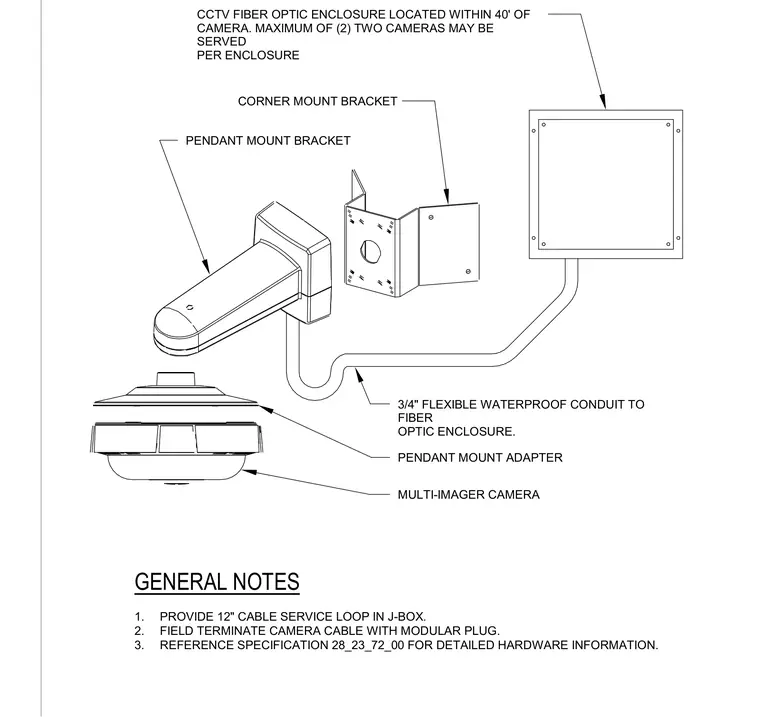

An exterior corner mount bracket supports a pendant mount bracket and pendant mount adapter attached to a multi-imager camera. A three-quarter-inch flexible waterproof conduit runs from the camera assembly to a CCTV fiber optic enclosure located within forty feet. A maximum of two cameras are served per enclosure. A twelve-inch cable service loop is provided in the junction box, and the camera cable is field terminated with a modular plug.
CCTV FIBER OPTIC ENCLOSURE LOCATED WITHIN 40' OF CAMERA. MAXIMUM OF (2) TWO CAMERAS MAY BE SERVED PER ENCLOSURE CORNER MOUNT BRACKET PENDANT MOUNT BRACKET PENDANT MOUNT ADAPTER 3/4" FLEXIBLE WATERPROOF CONDUIT TO FIBER OPTIC ENCLOSURE. MULTI-IMAGER CAMERA 1. PROVIDE 12" CABLE SERVICE LOOP IN J-BOX. 2. FIELD TERMINATE CAMERA CABLE WITH MODULAR PLUG. 3. REFERENCE SPECIFICATION 28_23_72_00 FOR DETAILED HARDWARE INFORMATION. GENERAL NOTES
