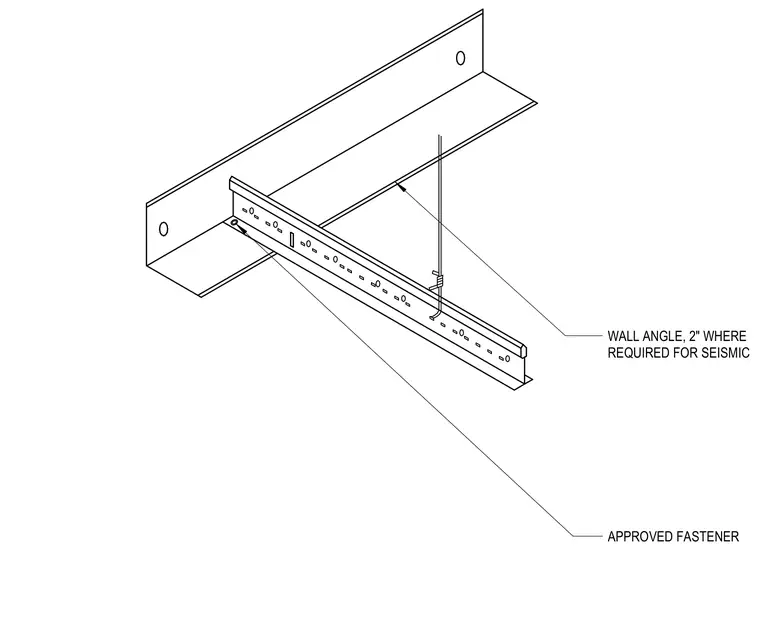

A suspended ceiling grid tee terminates at a perimeter wall angle fastened to the wall assembly. The wall angle provides a two-inch clearance where required for seismic movement. An approved fastener secures the components together.
