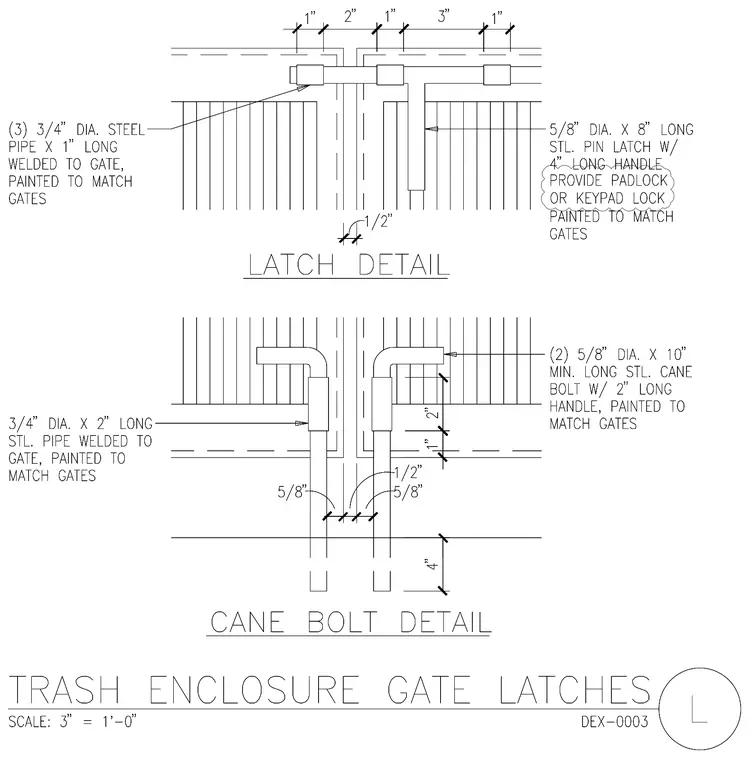

An upper gate latch assembly incorporates a five-eighths-inch diameter by eight-inch long steel pin latch with a four-inch long handle, configured to accept a padlock or keypad lock and painted to match the gates. Three three-quarter-inch diameter steel pipes, one inch long, are welded to the gate and painted to match, serving as guides. Two cane bolt assemblies utilize two five-eighths-inch diameter by ten-inch long minimum steel cane bolts with two-inch long handles, painted to match the gates and guided by three-quarter-inch diameter by two-inch long steel pipes welded to the gates. Both assemblies accommodate a half-inch gap between the meeting gate leaves.
