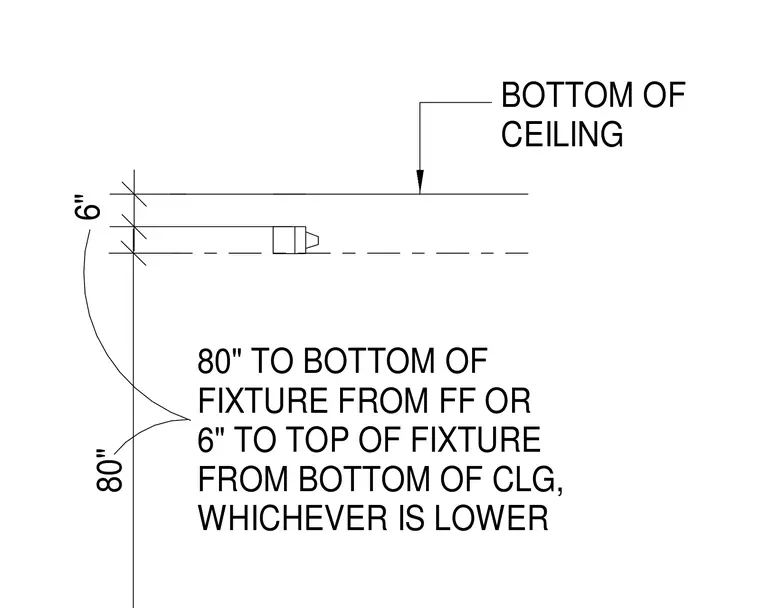

Lighting fixtures are installed maintaining a clearance of six inches from the bottom of the ceiling to the top of the fixture, or eighty inches from the finished floor to the bottom of the fixture, whichever is lower.
80" 6" BOTTOM OF CEILING 80" TO BOTTOM OF FIXTURE FROM FF OR 6" TO TOP OF FIXTURE FROM BOTTOM OF CLG, WHICHEVER IS LOWER
