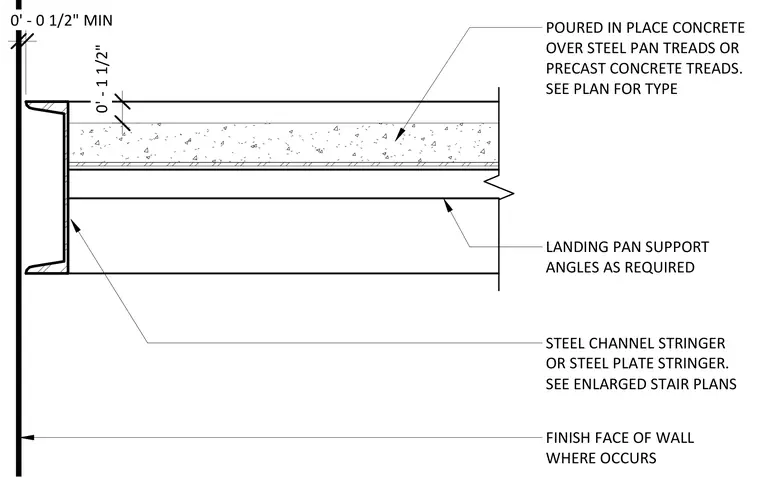

This stair landing detail features poured-in-place concrete over steel pan treads or precast concrete treads supported by landing pan support angles as required. The assembly is framed by a steel channel stringer or steel plate stringer, which ties into the stair layout. A minimum zero-foot zero-and-one-half-inch clearance is maintained from the finish face of the wall where it occurs, with a one-and-one-half-inch vertical dimension noted.
STEEL CHANNEL STRINGER OR STEEL PLATE STRINGER. SEE ENLARGED STAIR PLANS LANDING PAN SUPPORT ANGLES AS REQUIRED FINISH FACE OF WALL WHERE OCCURS 0' - 0 1/2" MIN 0' - 1 1/2" POURED IN PLACE CONCRETE OVER STEEL PAN TREADS OR PRECAST CONCRETE TREADS. SEE PLAN FOR TYPE
