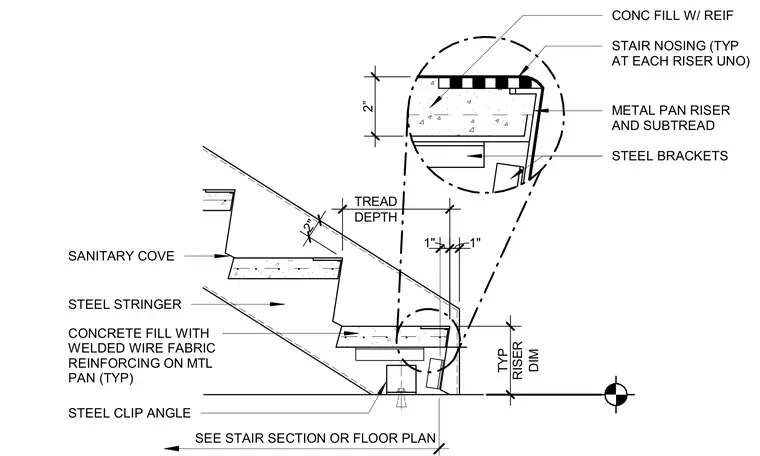

Concrete fill with welded wire fabric reinforcing is placed over a metal pan riser and subtread. A stair nosing is typical at each riser unless noted otherwise, with a sanitary cove provided at the base. The metal pan assembly bears on steel brackets and connects to a structural steel stringer via a steel clip angle. Dimensions indicate tread depth and typical riser height.
2" 1" 1" 2” CONCRETE FILL WITH WELDED WIRE FABRIC REINFORCING ON MTL PAN (TYP) STEEL STRINGER STEEL CLIP ANGLE STEEL BRACKETS STAIR NOSING (TYP AT EACH RISER UNO) METAL PAN RISER AND SUBTREAD CONC FILL W/ REIF SEE STAIR SECTION OR FLOOR PLAN DIM TYP RISER SANITARY COVE DEPTH TREAD
