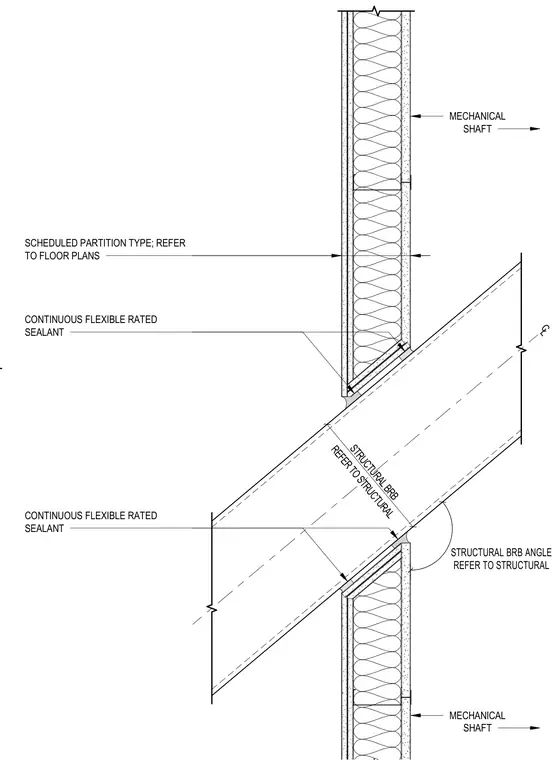

A scheduled partition type meets a structural buckling-restrained brace and its associated structural angle at a mechanical shaft. Continuous flexible rated sealant is applied at the joints between the partition and the brace assembly on both sides. The partition framing and wallboard terminate cleanly against the angled structural member.
CONTINUOUS FLEXIBLE RATED SEALANT MECHANICAL SHAFT MECHANICAL SHAFT C L REFER TO STRUCTURAL STRUCTURAL BRB SCHEDULED PARTITION TYPE; REFER TO FLOOR PLANS STRUCTURAL BRB ANGLE REFER TO STRUCTURAL CONTINUOUS FLEXIBLE RATED SEALANT
