Architectural · A-F7GRY

12-Inch Shading Canopy Alt. 2

Materials

Steel

Elements

Columns Walls Canopies Connections / Plates

Connections

HSS Connection

About this detail

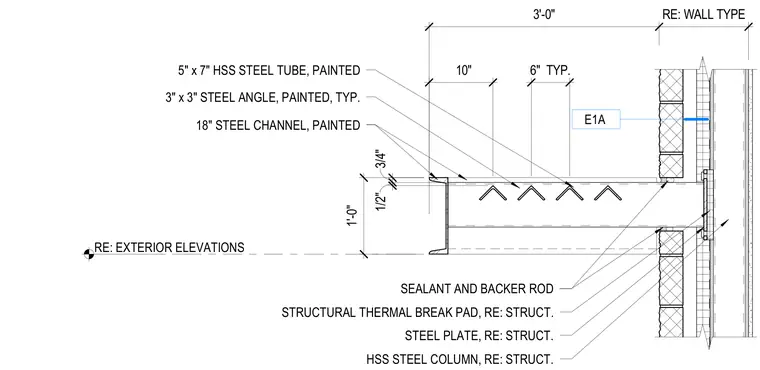

A 5x7 inch hollow structural section steel tube and an 18-inch steel channel form the canopy frame, featuring typical 3x3 inch painted steel angles. The assembly attaches to an HSS steel column and steel plate at the exterior wall, separated by a structural thermal break pad. Sealant and backer rod seal the junction at the wall interface, referenced to wall type E1A.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
