Architectural · A-F7BV3

Curtain Wall Mullion and Louver Band Junction

About this detail

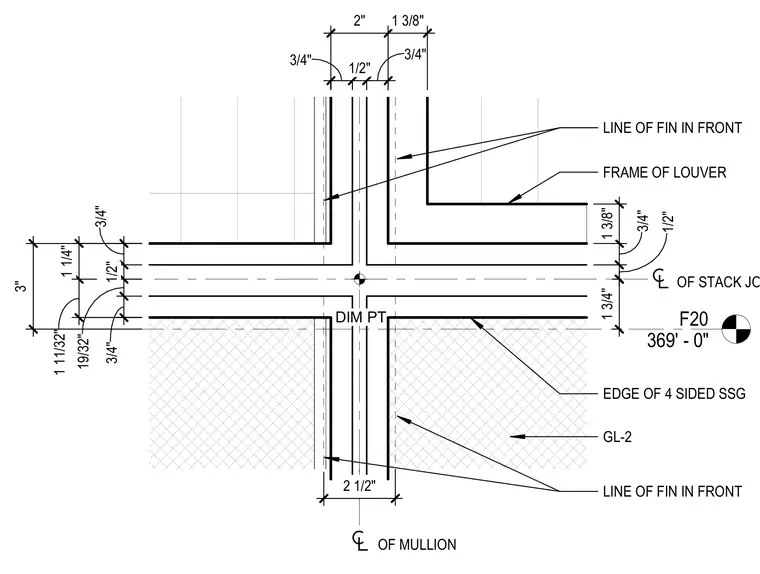

An intersection of a curtain wall mullion, a stack joint, and a louver frame. The assembly coordinates the line of the front fin, the centerlines of the stack joint and mullion, and the edge of four-sided structural silicone glazed glass designated as GL-2. Detailed dimensions govern the spacing of the louver frame, fins, and structural grid alignment at the dimension point.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
