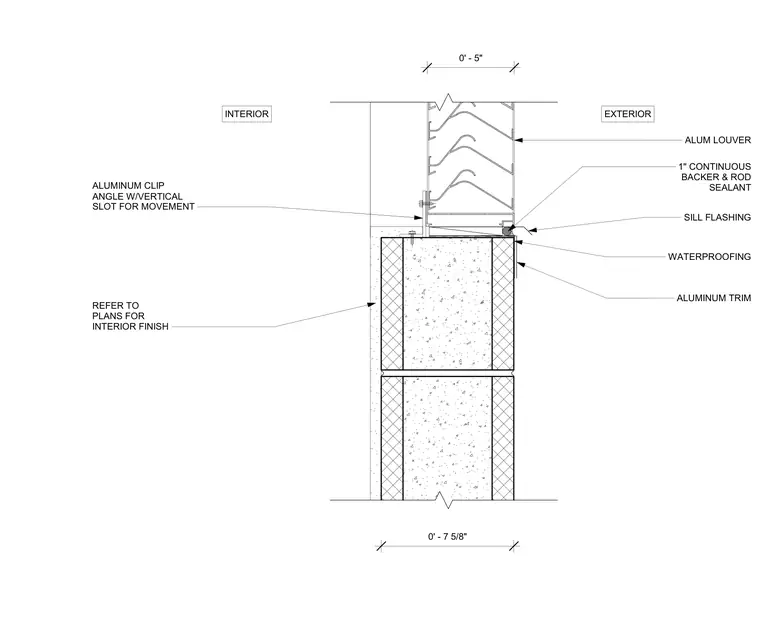

An aluminum louver is anchored to the wall assembly using an aluminum clip angle featuring a vertical slot for movement. A continuous one-inch backer rod and sealant joint are installed at the exterior sill interface. Sill flashing and waterproofing protect the base of the opening, supplemented by exterior aluminum trim. Interior finishes are coordinated per architectural floor plans.
ALUMINUM TRIM SILL FLASHING INTERIOR EXTERIOR ALUM LOUVER WATERPROOFING ALUMINUM CLIP ANGLE W/VERTICAL SLOT FOR MOVEMENT REFER TO PLANS FOR INTERIOR FINISH 1" CONTINUOUS BACKER & ROD SEALANT 0' - 5" 0' - 7 5/8"
