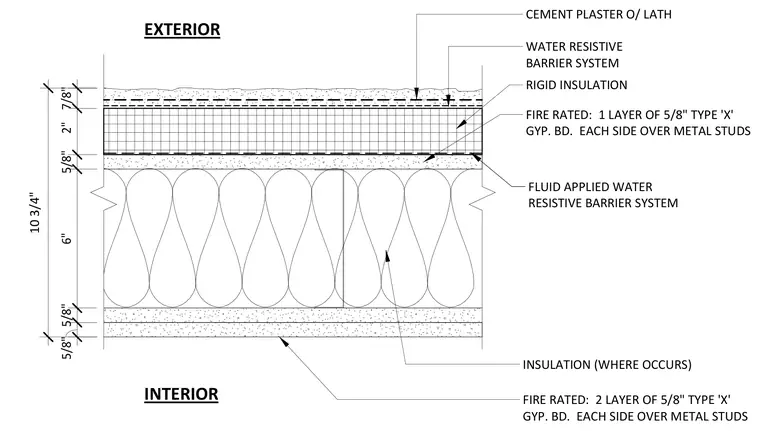

This two-hour fire-rated exterior wall assembly consists of metal studs framed with one layer of 5/8-inch Type X gypsum board on the exterior side and two layers of 5/8-inch Type X gypsum board on the interior side. The exterior layers include a fluid-applied water-resistive barrier system, rigid insulation, a water-resistive barrier system, and cement plaster over lath. Cavity insulation is installed between the metal studs where specified. The overall wall thickness measures 10-3/4 inches.
INSULATION (WHERE OCCURS) FIRE RATED: 1 LAYER OF 5/8" TYPE 'X' GYP. BD. EACH SIDE OVER METAL STUDS 7/8" 2" 5/8" 6" 5/8" 5/8" FIRE RATED: 2 LAYER OF 5/8" TYPE 'X' GYP. BD. EACH SIDE OVER METAL STUDS 10 3/4" EXTERIOR INTERIOR RIGID INSULATION FLUID APPLIED WATER RESISTIVE BARRIER SYSTEM WATER RESISTIVE BARRIER SYSTEM CEMENT PLASTER O/ LATH
