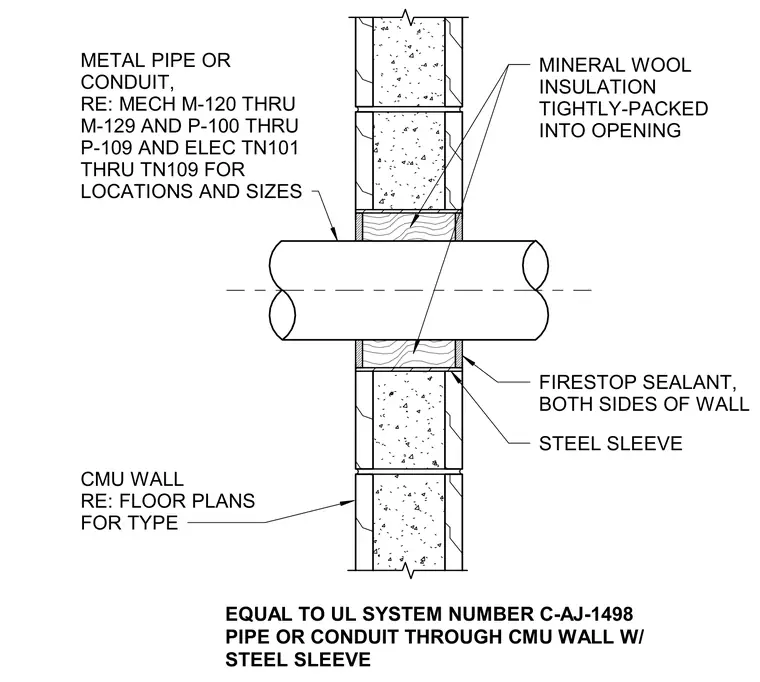

A metal pipe or conduit penetrates a concrete masonry unit wall through a galvanized steel sleeve centered in the masonry opening. The annular space between the pipe and the sleeve is tightly packed with mineral wool insulation. Firestop sealant is applied at both sides of the wall at the sleeve interface to maintain the required fire rating equal to UL System Number C-AJ-1498.
EQUAL TO UL SYSTEM NUMBER C-AJ-1498 PIPE OR CONDUIT THROUGH CMU WALL W/ STEEL SLEEVE CMU WALL RE: FLOOR PLANS FOR TYPE STEEL SLEEVE MINERAL WOOL INSULATION TIGHTLY-PACKED INTO OPENING FIRESTOP SEALANT, BOTH SIDES OF WALL METAL PIPE OR CONDUIT, RE: MECH M-120 THRU M-129 AND P-100 THRU P-109 AND ELEC TN101 THRU TN109 FOR LOCATIONS AND SIZES
