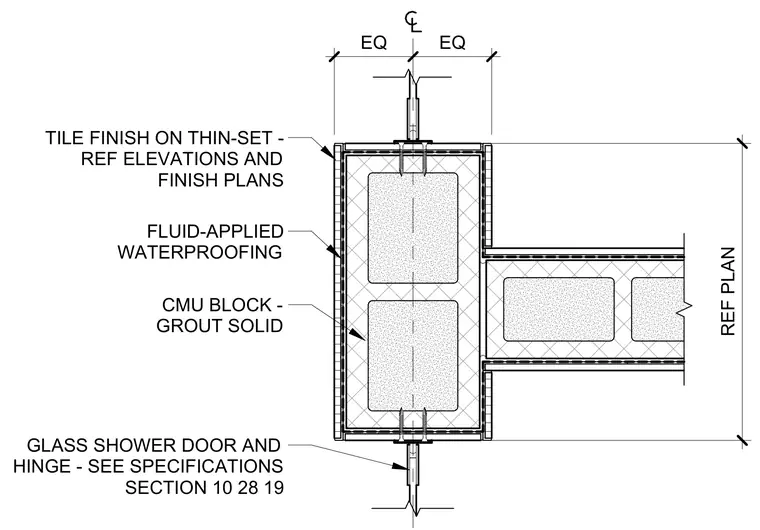

A glass shower door and hinge assembly mounts to a solidly grouted concrete masonry unit block wall. Fluid-applied waterproofing coats the masonry substrate beneath a tile finish set in thin-set mortar. Fasteners secure the hinge hardware directly into the reinforced masonry jamb.
REF PLAN GLASS SHOWER DOOR AND HINGE - SEE SPECIFICATIONS SECTION 10 28 19 TILE FINISH ON THIN-SET - REF ELEVATIONS AND FINISH PLANS FLUID-APPLIED WATERPROOFING CMU BLOCK - GROUT SOLID EQ EQ
