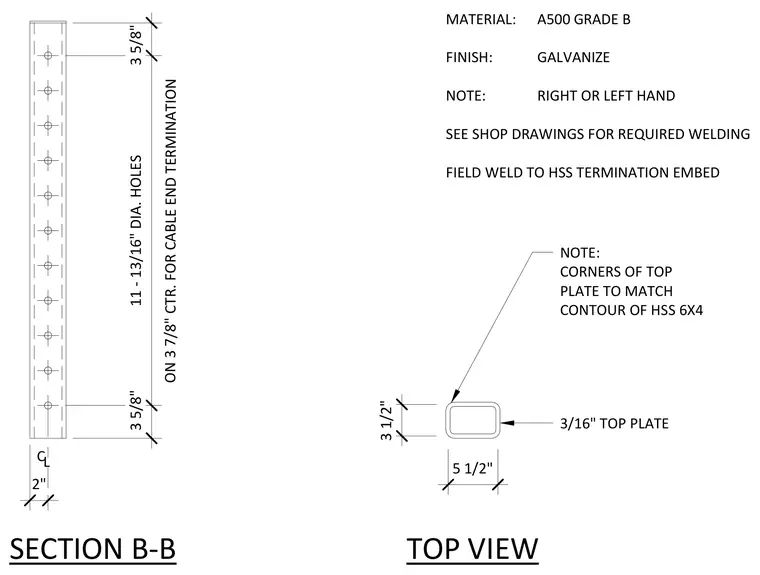

This structural steel connection detail shows a top view and section view of a cable end termination plate attached to an HSS 6x4 hollow structural section. The assembly features an ASTM A500 Grade B steel plate with a galvanized finish and corners modified to match the contour of the HSS member. The plate includes eleven 13/16 inch diameter holes spaced at 3-7/8 inches on center, positioned with 3-5/8 inch edge distances. Shop drawings dictate specific welding requirements, while installation requires a field weld to the HSS termination embed.
SECTION B-B TOP VIEW C L 2" 3 5/8" ON 3 7/8" CTR. FOR CABLE END TERMINATION 11 - 13/16" DIA. HOLES 3 5/8" NOTE: CORNERS OF TOP PLATE TO MATCH CONTOUR OF HSS 6X4 3/16" TOP PLATE MATERIAL: A500 GRADE B FINISH: GALVANIZE NOTE: RIGHT OR LEFT HAND SEE SHOP DRAWINGS FOR REQUIRED WELDING FIELD WELD TO HSS TERMINATION EMBED 3 1/2" 5 1/2"
