Architectural · A-F76FD

Appliance Cabinet - Double Oven / Appliance Cabinet - Microwave

Materials

Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Partitions Doors Ceilings Floors / Slabs Millwork / Casework

About this detail

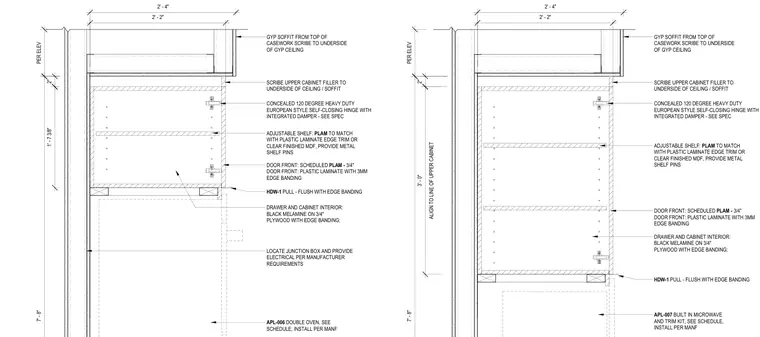

Built-in casework for a double oven and a microwave is constructed with three-quarter-inch plywood interiors finished in black melamine with edge banding. Door fronts feature plastic laminate with three-millimeter edge banding, mounted on concealed one-hundred-twenty-degree heavy-duty European-style self-closing hinges with integrated dampers and hardware pulls flush with the edge banding. Adjustable shelves are finished in plastic laminate to match or clear-finished medium-density fiberboard, supported by metal shelf pins. The upper casework interfaces with a two-inch gypsum board soffit scribed to the underside of the gypsum ceiling, and filler pieces are scribed to the underside of the ceiling and soffit per elevation. Electrical junction boxes are located to serve the appliances in accordance with manufacturer requirements.
