Exterior CCTV Fiber Optic Junction Box Installation

Materials

Elements

Connections / Plates Roof / Floor Openings

About this detail

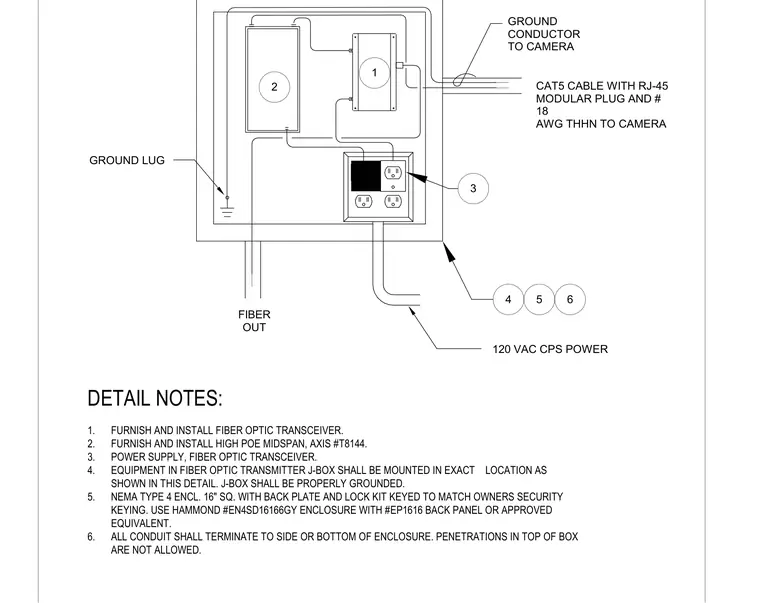

An exterior NEMA Type 4 enclosure measuring 16 inches square houses a fiber optic transceiver, a high POE midspan power supply, and a 120 VAC duplex receptacle mounted on an interior back plate. A ground lug connects to the enclosure while conduit entering from the bottom or side routes incoming fiber, CAT5 cable with an RJ-45 modular plug, #18 AWG THHN conductor, and 120 VAC power. Penetrations in the top of the box are prohibited, and all internal equipment is mounted in exact accordance with the schematic arrangement.
