Architectural · A-F6YRJ

Section At Steam Cmu

Scale: SCALE: 1" = 1'-0"
Units: imperial
Discipline: Architectural

Materials

Steel Cold-formed Steel Timber / Wood Masonry / CMU Metal (misc.)EIFS / Plaster / Stucco

Elements

Beams Walls Ceilings Floors / Slabs Expansion / Control Joints Waterproofing / Flashing Insulation Reinforcing

Connections

Expansion / Slip Connection

About this detail

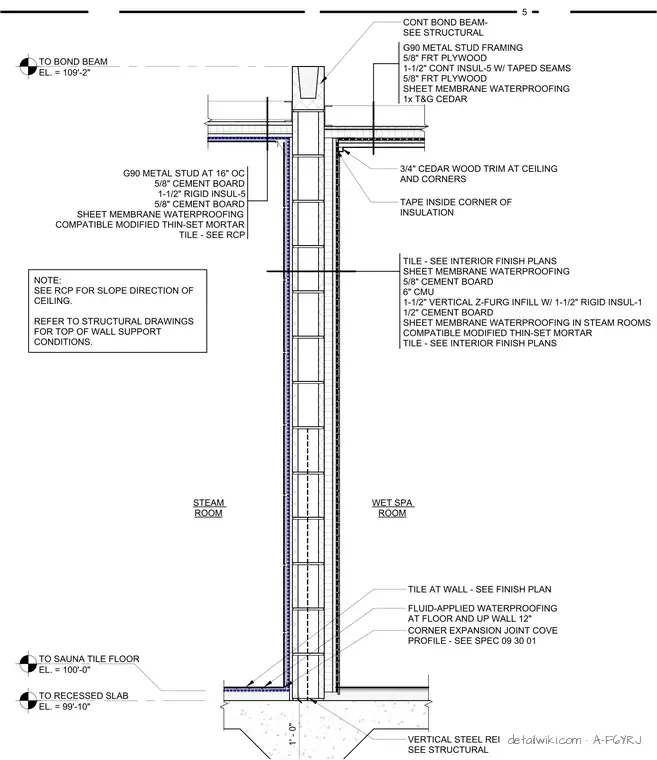

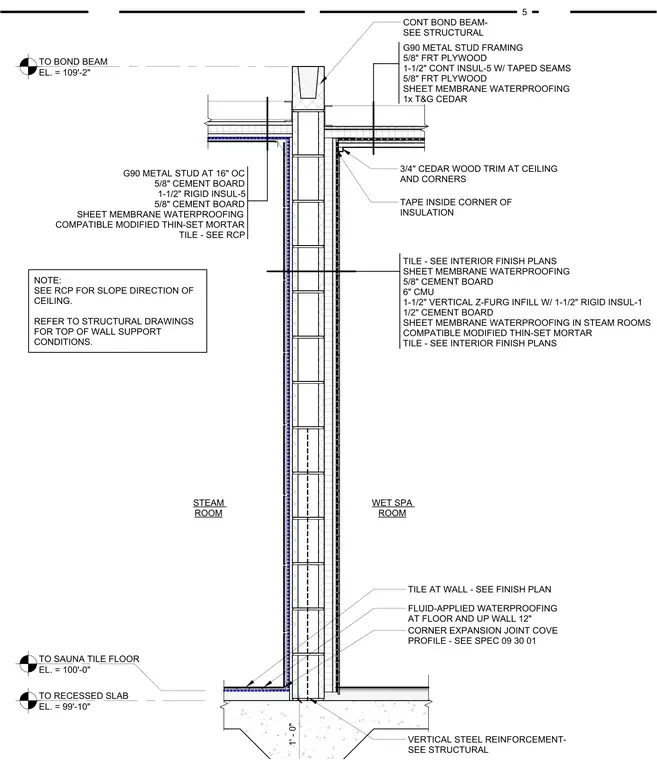

This assembly features a central six-inch concrete masonry unit wall with vertical steel reinforcement as specified in structural drawings. The steam room side is finished with five-eighths-inch cement board, one-and-a-half-inch rigid insulation, and a second layer of five-eighths-inch cement board, all sealed with sheet membrane waterproofing and finished with tile. The wet spa room side utilizes vertical Z-furring with one-and-a-half-inch rigid insulation, half-inch cement board, sheet membrane waterproofing, and tile. At the base, fluid-applied waterproofing extends from the floor twelve inches up the wall, incorporating a corner expansion joint cove profile. The ceiling assembly on the steam room side consists of G90 metal stud framing, five-eighths-inch fire-retardant-treated plywood, one-and-a-half-inch continuous insulation with taped seams, a second layer of five-eighths-inch fire-retardant-treated plywood, and one-by-tongue-and-groove cedar cladding.
